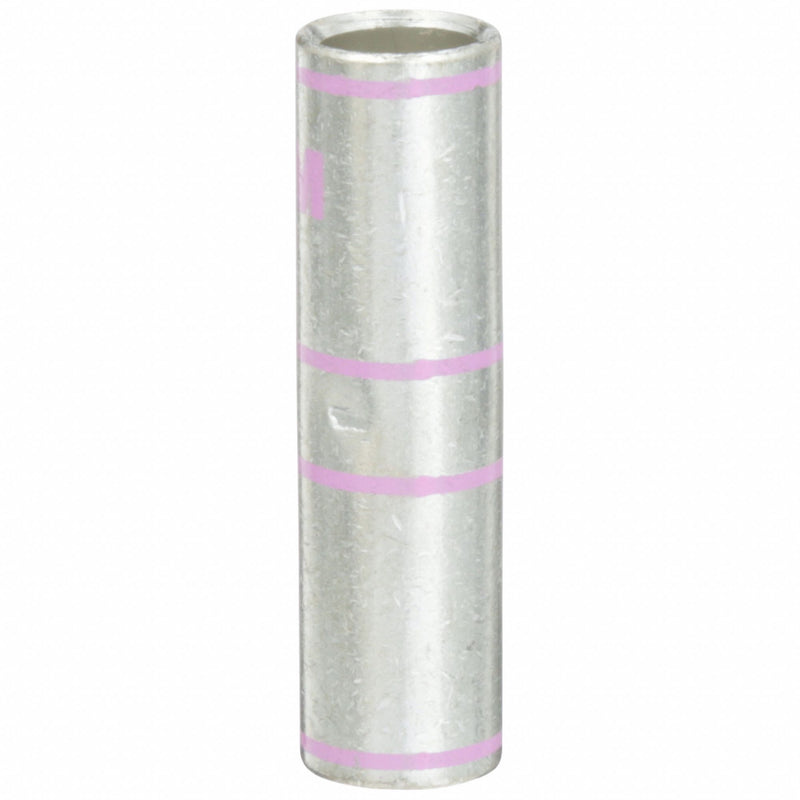

3M 10005 Open Barrel Splices, 1/0 AWG Wire Size, Pink Code, 1.88 in, Copper Barrel, 1/0 AWG Max Wire Size
Original price
$243.79
-
Original price
$243.79
Original price
$243.79
$243.79
-
$243.79
Current price
$243.79
Open Barrel Splices, Color Code Pink, Die Code 42, For Wire Type Stranded, Material High Conductivity Copper, Maximum Wire Size 1/0 AWG, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438, Barrel Inside Diameter 0.39 in, Barrel Outside Diameter 0.51 in, Compatible Installation Tool Model Number 10000 to 11000, Contact Finish Tin, Contact Material Copper
| Maximum Wire Size | 1/0 AWG |
|---|---|
| Minimum Wire Size | 1/0 AWG |
| Length | 1.88 in |
| Outside Dia. | 0.51 in |
| Barrel Inside Diameter | 0.39 in |
| Barrel Outside Diameter | 0.51 in |
| Maximum Wire Insulation Diameter | 0.51 in |
| Type | Splice |
| Color | Pink |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Minimum Operating Temperature | 73 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | Yes |
| Die Code | 42 |
| Standards | CSA Certified, UL Listed |
| Material | High Conductivity Copper |
| Special Features | Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| Compatible Installation Tool Model Number | 10000 to 11000 |
| Contact Material | Copper |
| Color Code | Pink |
| For Wire Type | Stranded |
| Contact Finish | Tin |
| Series | 10000 |
| Country of Origin | Chile (subject to change) |
