3M 59178 Cold Shrink Cable Splice Kit, 15 kV, 4 AWG to 3/0 AWG, Black
Original price
$2,313.22
-
Original price
$2,313.22
Original price
$2,313.22
$2,313.22
-
$2,313.22
Current price
$2,313.22

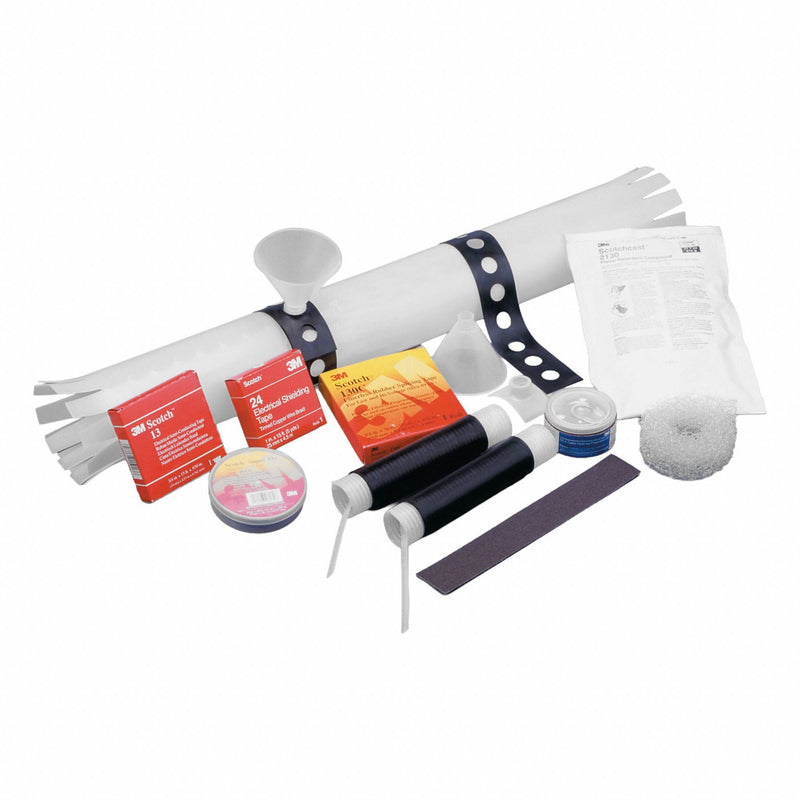

Cold shrink splice kits contain combinations of items that help users protect spliced connections using cold shrink sleeves. These sleeves start stretched over a temporary tube placed around the wires to be joined and pulled out, while the shrink sleeve remains. This 3M kit splices 15 kV power cable with conductors from 4 AWG to 3/0 AWG and includes funnels, spacer webs, EPDM rubber cold-shrink insulator assemblies, Scotchcast flame-retardant compound, and a full set of Scotch electrical tapes.
| Color | Black |
|---|---|
| Maximum Voltage | 15 kV |
| Minimum Wire Size | 4 AWG |
| Maximum Wire Size | 3/0 AWG |
| Maximum Conductors | 3 |
| For Conductor Material | Aluminum; Copper |
| For Conductor Type | MPF MPF-GC SHD-GC |
| Compatible with Product Type | Draglines; Drills; Power Shovels; Type MPF Underground Power Feeder Cables |
| Maximum Cable Outside Diameter | 4 in |
| Insulation Material | Rubber |
| Material | EPDM Rubber |
| Direct Burial Rated | No |
| Number of Pieces | 1 |
| Standards | RoHS 2011/65/EU |
| Country of Origin | United States |
