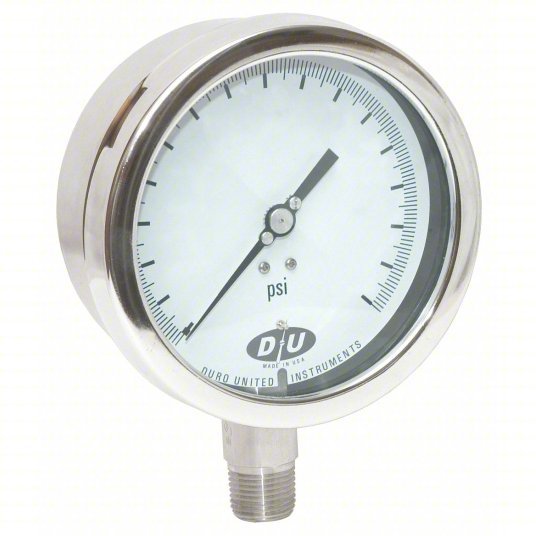

Duro 4207-0333-CERT Pressure Gauge, 0 to 30 psi, 1/2 in MNPT, Stainless Steel, Silver
Original price
$244.59
-
Original price
$244.59
Original price
$244.59
$244.59
-
$244.59
Current price
$244.59
Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
| Connection Location | Lower |
| Gauge Application | Demanding Industries Such as Chemical, Petroleum and Other Services Where Accurate and Dependable Gauges are Required |
| Includes | Pulsation Restrictor |
| Range | 0 to 30 psi |
| Accuracy | +/-0.5% |
| Material | Stainless Steel |
| Color | Stainless Steel |
| Gauge Primary Range Values | 0 to 30 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Stainless Steel |
| Case Color | Silver |
| Graduations | 5 psi |
| Liquid Filled | No |
| Gauge Lens Material | Glass |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Gauge Case Material | Stainless Steel |
| Gauge Sensor Material | 316 Stainless Steel |
| Calibration Certificate Included | Yes, NIST with Data |
| Series | 20 |
| Max. Pressure (PSI) | 30 |
| Gauge Accuracy | +/-0.50% |
| Basic Gauge Lens Material | Glass |
| Smallest Graduation | 0.2 psi |
| Gauge Connection Location | Bottom |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Gauge Panel Mountable | No |
| Gauge Primary Range Smallest Graduation | 0.2 |
| Gauge Case Color | Stainless Steel |
| Operating Temp. Range | -40 Degrees to 275 Degrees F |
| Basic Gauge Socket Material | Stainless Steel |
| Gauge Socket Material | 316 Stainless Steel |
| Case Material | Stainless Steel |
| Socket Material | Stainless Steel |
| Case Construction | Corrosion Resistant |
| Blowout Safety Back | No |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Freeze Resistant Movement | No |
| Dial Color | White |
| Lens Material | Glass |
| Includes Mounting Hardware | No |
| Gauge Accuracy Grade | Grade 2A - Process |
| IP/NEMA Rating | Not Rated |
| Vibration Resistance | None |
| Dry Dampening Feature | None |
| Panel-Mountable | No |
| Gauge Wetted Parts | Stainless Steel |
| Process Connection Type | NPT |
| Process Connection Location | Bottom |
| Primary Pressure Range | 0 to 30 |
| Sensor Type | Bourdon Tube |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Sensor Material | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Removable Bezel | Yes |
| Primary Scale Units | psi |
| Accuracy Scale | Full Scale |
| Non-Sparking | No |
| Movement Material | Stainless steel |
| Lens Material - Gauge | Glass |
| Gauge Case Liquid | None |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Includes Calibration Certificate | NIST with Data |
| Process Connection Gender | Male |
| Pointer Characteristics | Lightweight Balanced Construction with Micrometer Adjustment |
| Cleaned for Oxygen Service | No |
| Liquid-Filled Case | No |
| Ambient Operating Temperature Range | -40 Degrees to 275 Degrees F |
| Movement Type | Rotary |
| Field Fillable | No |
| Bezel Mounting Type | Bayonet |
| Primary Scale Minor Graduations | 0.2 |
| Pressure Range Type | Pressure |
| Scale Type | Single |
| Includes Vent Plug | No |
