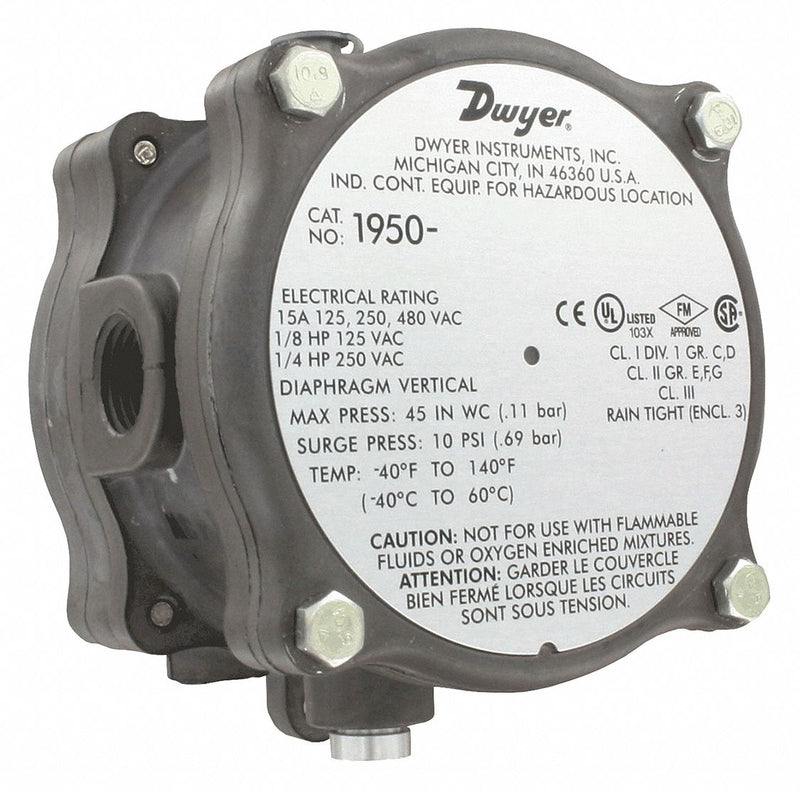

Dwyer 1950-0-2F Pressure Switch 1950-0-2F, 15, Adj, 0.15 in wc to 0.5 in wc, NEMA-3 Enclosure, SPDT, NPT, 1/8 in NPT
Original price
$496.08
-
Original price
$496.08
Original price
$496.08
$496.08
-
$496.08
Current price
$496.08
Pressure Switch 1950-0-2F, 15, Application HVAC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 125/250/480 V AC, 60 Hz Resistive, Housing Material Aluminum, Housing Type NEMA-3 Enclosure, IP Rating IP54, Includes Drain Plug, O-Ring Seal Cover, Maximum Differential Pressure Setting 0.5 in wc, Maximum Pressure Setting 0.5 in wc, Minimum Differential Pressure Setting 0.15 in wc
| Sample Line Connection Size | 1/8 in |
|---|---|
| Mounting Hole Diameter | 1/4 in |
| Overall Width | 5 7/16 in |
| Overall Depth | 3 1/2 in |
| Action | Standard |
| Contact Form | SPDT |
| Pressure Connection Type | 1/8" FNPT |
| Range | 0.15 to .50 in H2O |
| Housing Material | Aluminum |
| Standards | CE, CSA, FM, RoHS, UL Listed |
| Process Connection | 1/8" female NPT. |
| Features | Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation; External set point screw provides easy access that simplifies making adjustments without opening or disassembling enclosure; Easily accessible electrical connection simplifies the installation |
| IP Rating | IP54 |
| Electrical Connection | Screw Terminals |
| Application | HVAC |
| Includes | Drain Plug, O-Ring Seal Cover |
| Material | Aluminum |
| Mounting Orientation | Vertical |
| Sample Line Connector Type | NPT |
| Pressure Type | Differential |
| Pressure Setpoint Type | Adjustable |
| Mounting Hole Center to Center Distance | 4 7/8 in |
| Maximum Differential Pressure Setting | 0.5 in wc |
| Product Type | Differential Pressure Switch |
| Housing Type | NEMA-3 Enclosure |
| Minimum Pressure Setting | 0.15 in wc |
| Maximum Pressure Setting | 0.5 in wc |
| Agency Approvals | CE, CSA, FM, UL. |
| Temperature Limits | -40 to 140°F (-40 to 60°C); 0 to 140°F (-17.8 to 60°C)for 1950P-8, 15, 25, and 50. -30 to 130°F (-34.4 to 54.4°C) for 1950-02. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type on top of housing. |
| Switch Type | Single-pole double-throw (SPDT). |
| Electrical Rating | 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 125/250/480 V AC, 60 Hz Resistive |
| Electrical Connection Type | Screw Terminals |
| Minimum Differential Pressure Setting | 0.15 in wc |
| Country of Origin | United States |
