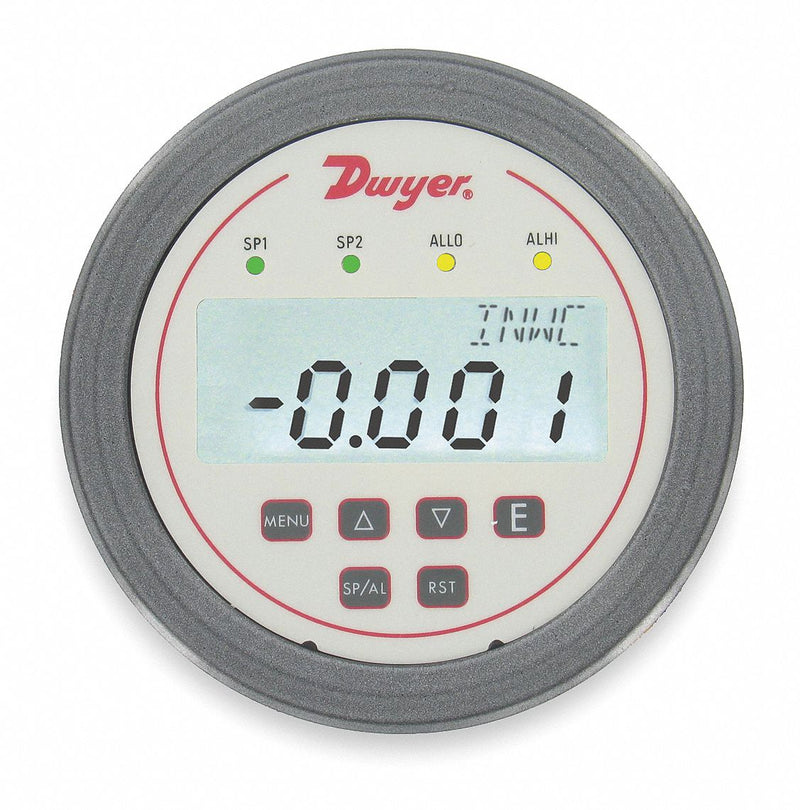

Dwyer DHC-006 Digital Panel Meter, 9,999 Display Span - Max, 12 V AC – 28 V AC, 12 V DC – 28 V DC, (2) SPDT
Original price
$677.61
-
Original price
$677.61
Original price
$677.61
$677.61
-
$677.61
Current price
$677.61
Digital Panel Meter, Pressure, Input Range 0 to 2.5 in WC, Accuracy +/-1.5 Percent, Display Span 9999, Display Digits Selectable, 4 Digit LCD Display, 2 SPDT Relays, True RMS -, - Excitation, Use With -, Fits 4-3/4 in Round Cut Out, Connector Type Compression Fitting, Process Connection 1/8 in ID Tubing, Power Required 12 to 28VAC, 12 to 28VDC, Not Applicable Interface, Output 4 to 20 mA DC, Depth 3.125 in, Mounting Front Ring, Style -, Includes Instructions
| Depth | 3.125 in |
|---|---|
| Cutout Diameter | 4 3/4 in |
| Cutout DIN Size | 1/8 |
| Overall Depth | 2.69 in |
| Digit Height - Maximum | 0.4 in |
| Type | Pressure |
| Input Range | 0 to 2.5 in WC |
| Accuracy | +/-1.5% |
| Display Span | 9999 |
| Display | 4 Digit LCD |
| Relays | 2 SPDT |
| Display Digits | Selectable |
| Includes | Instructions |
| Connector Type | Compression Fitting |
| Mounting | Front Ring |
| Fits | 4-3/4 in Round Cut Out |
| Power Required | 12 to 28VAC, 12 to 28VDC |
| Output | 4 to 20 mA DC |
| Process Connection | 1/8 in ID Tubing |
| Standards | CE |
| Series | DH3 |
| Display Span - Maximum | 9,999 |
| Relay DC Contact Rating | 1.00 A @ 30V AC/DC |
| Digital Display Screen Color | Black |
| Pressure Display - Minimum | 0 in wc |
| Product Type | Differential Pressure Controller |
| Relay Contact Form | (2) SPDT |
| Terminal Connection Type | Pin |
| DC Voltage Input - Maximum | 28 V DC |
| Pressure Display - Maximum | 2.5 in wc |
| Number of Display Digits | 4 |
| Relay AC Contact Rating | 1.00 A @ 30V AC/DC |
| NEMA Enclosure Rating | 4X |
| AC Voltage Input - Maximum | 28 V AC |
| Digital Display Screen Type | LCD |
| AC Voltage Input - Minimum | 12 V AC |
| DC Voltage Input - Minimum | 12 V DC |
| Country of Origin | United States |
