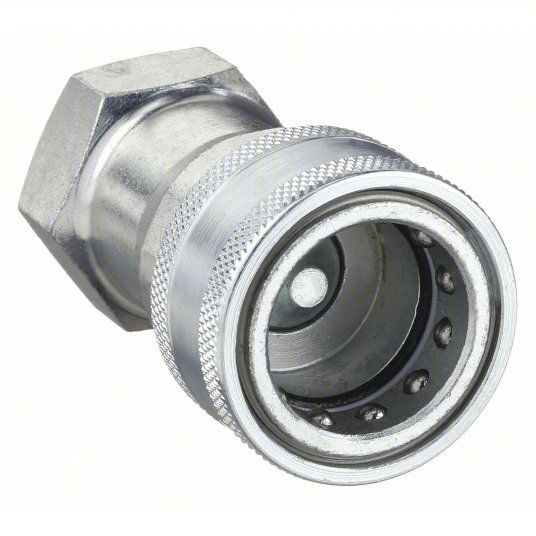

Eaton 5601-4-4S Hydraulic Quick Connect Hose Coupling: 1/4 in Coupling Size, Steel, Sleeve, Female
Original price
$48.55
-
Original price
$48.55
Original price
$48.55
$48.55
-
$48.55
Current price
$48.55
Hydraulic Quick Connect Hose Coupling, Socket, 5600 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 4 lpm
| Quick Coupler Type | Hydraulic Coupler Body |
| Coupler Interchange Type | 5600 A |
| Connection Type | NPT |
| Coupler Flow Rate | 1.0 gpm |
| Max. Pressure | 5000 psi |
| Coupler Body Material | Steel |
| Sleeve Material | Steel |
| Coupler Finish | Trivalent Chromium Zinc |
| Series | 5600 |
| Body Material | Steel |
| Coupling Locking Type | Sleeve |
| For Use With | All Hydraulic Applications |
| Locking Mechanism | Ball |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Valve Design | Poppet |
| Seal Material | Nitrile |
| Seal Type | Captive Valve |
| Coupler Connection Type | FNPT |
| Shut Off | double |
| Hansen Interchange | 2-I-16; HA-15211-00 |
| Standards | ISO 7241-1 Series A |
| Parker Interchange | 6601-4-4; 6125-12 |
| Snap-Tite Interchange | 61C-4-4; 61C4-4F |
| Max. Working Pressure @ 70 F | 5,000 psi |
| Pull Ring Material | PTFE |
| Coupling Component | Socket |
| Valve Type | Poppet |
| Maximum Vacuum | 28 in Hg |
| Includes Bearing | Yes |
| Finish/Coating | Trivalent Chromium Zinc |
| Includes Shut Off | Yes |
| Max. Flow Rate | 4 lpm |
| Weatherhead Interchange | 5601-4-4S |
| Includes Valve | Yes |
| Fitting Type | FNPT |
| Hose Fitting Gender | Female |
| Safeway Interchange | S565-2 |
