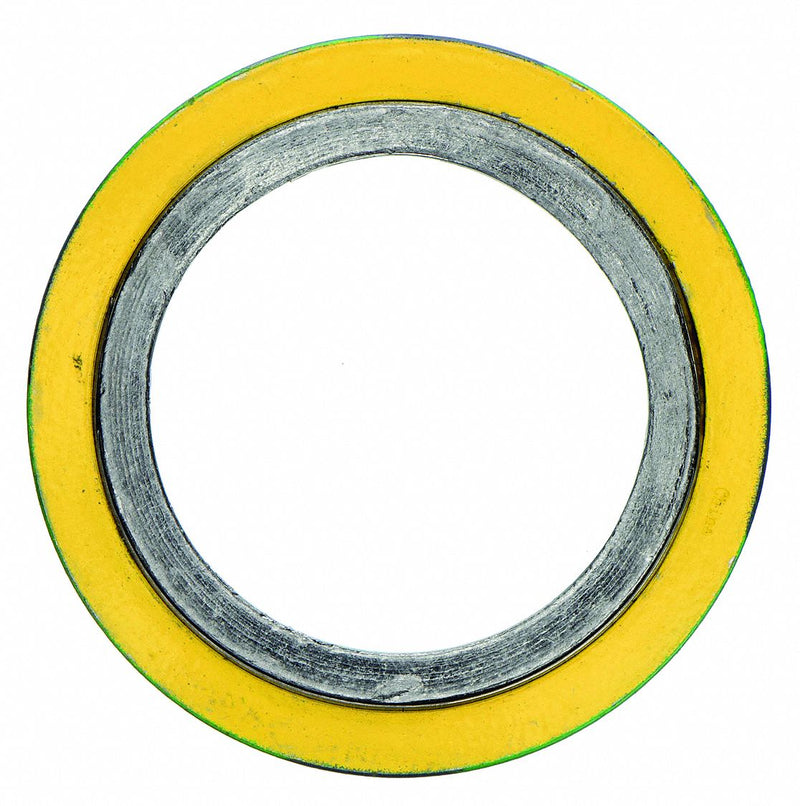

Flexitallic CG Spiral Wound Flange Gasket, ANSI Class 150, 2 in Pipe, 316L SS Winding / Graphite Filler
Original price
$9.95
-
Original price
$9.95
Original price
$9.95
$9.95
-
$9.95
Current price
$9.95
Spiral Wound Flange Gasket: Graphite Filler, 316L Stainless Steel Winding, For 2 in Pipe. Vendor: Flexitallic. Mfr Model: CG. Country of Origin: China.
| Inside Ring Material | None |
|---|---|
| Outside Ring Material | Carbon Steel |
| Filler Material | Graphite |
| For Pipe Size | 2 in |
| Inside Diameter | 2-3/4 in |
| Outside Diameter | 4-1/8 in |
| Thickness | 3/16 in |
| Stripe Color | Gray |
| Outside Rim Color | Green |
| FDA Approved | No |
| Minimum Operating Temperature | -400 °F |
| Maximum Operating Temperature | 842 °F |
| Maximum Operating Pressure | 6,251.14 psi |
| Resistance Properties | Chemical-Resistant |
| Features | Provides Radial Strength to Prevent Gasket Blow-Out and Acts as a Compression Stop |
| For Flange Surface Type | Flat Surface; Raised Surface |
| For DIN PN | PN10; PN100; PN16; PN160; PN25; PN250; PN40; PN64 |
| For Flange ANSI Class | 150 |
| Standards | ASME B16.20; ASME B16.5; B16.47; BS3381 |
| Winding Material | 316L Stainless Steel |
| Country of Origin | China |
