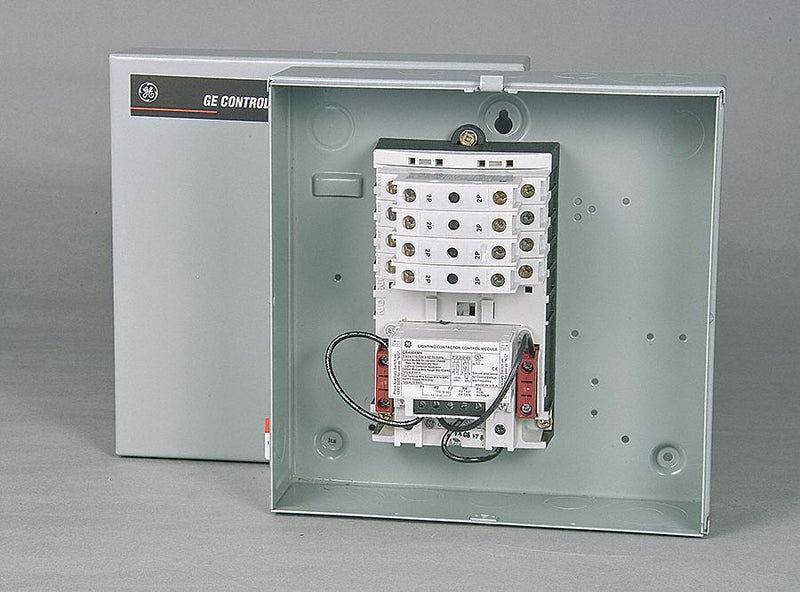

GE CR463M80NJA10A0 Lighting Magnetic Contactor

GE CR463M80NJA10A0 Lighting Magnetic Contactor, 8 Poles, 120V AC Coil, Mechanically Held, NEMA 1, 30A, CR460 Series

$1,662.04 - $1,662.04
$1,662.04
$1,662.04 - $1,662.04
$1,662.04

Lighting Magnetic Contactor, LED Lighting Current Rating 10 A, Coil Voltage 115-120V AC, Series CR460 Series, Number of Poles 8, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Single Phase - 120V AC 1 hp, Full Load Current - Resistive Not Applicable, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC

Contactor Type Mechanically Held
Number of Poles 8
Coil Volts 120V AC
Enclosure NEMA Rating 1
Full Load Amps 30 A
Hz 60
HP @ 1 Phase - 120V 1 hp
HP @ 3 Phase - 480V 10 hp
HP @ 3 Phase - 208V 3 hp
Standards CE, cUL, E1811 Vol 19, UL 508
HP @ 3 Phase - 240V 5 hp
HP @ 3 Phase - 575V 15 hp
HP @ 1 Phase - 240V 2 hp
Series CR460 Series
Mounting Style Surface
Fluorescent Lighting Current Rating 30 A
Horsepower @ Three Phase - 480V AC 10 hp
Horsepower @ Single Phase - 120V AC 1 hp
Minimum Operating Temperature -13 Degrees F
Frequency 60 Hz
Mounting Postion Vertical
Input Control Type 3-Wire
Contactor Style Mechanically Held Lighting Contactor
Horsepower @ Three Phase - 240V AC 5 hp
Maximum Voltage Rating 600V AC
Horsepower @ Single Phase - 240V AC 2 hp
LED Lighting Current Rating 10 A
Number of Normally Open Main Contacts 8
Horsepower @ Three Phase - 208V AC 3 hp
Maximum Operating Temperature 104 Degrees F
Horsepower @ Three Phase - 600V AC 15 hp
NEMA Enclosure Rating 1
Tungsten Lighting Current Rating 20 A
Phase Single
Reversing Capability Non-Reversing
Coil Voltage 115-120V AC
Full Load Current - Inductive 30 A
