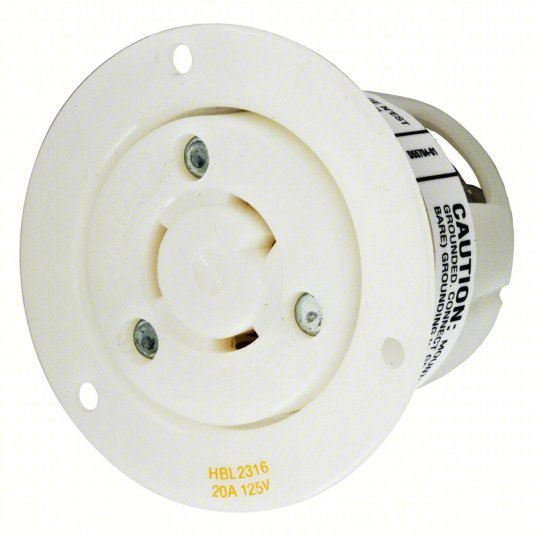

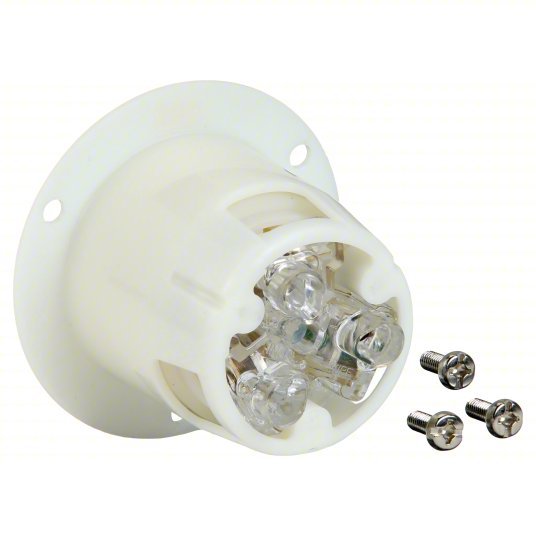

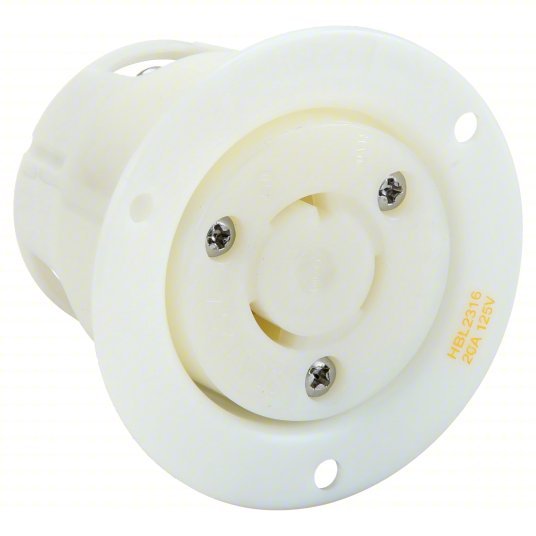

Hubbell HBL2316 20A Flanged Twist-Lock Receptacle 2P 3W 125VAC
Original price
$73.35
-
Original price
$73.35
Original price
$73.35
$73.35
-
$73.35
Current price
$73.35
Flanged Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Round, Flange Type Flanged, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover
| NEMA Configuration | L5-20 |
| Voltage | 125V AC |
| Amps | 20 |
| Color | White |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| IP Rating | IP20 |
| Mounting Type | Flush Mount |
| HP | 1.0 |
| Grade | Industrial |
| Material | Thermoplastic Elastomer |
| Special Features | With Cover |
| NEMA Rating | 12, 4, 4X |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Includes Mounting Hardware | Yes |
| Includes | Mounting Screws |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Operating Temperature | 75 Degrees C |
| Wire Connection Type | Screw Terminals |
| Market | Industrial |
| Features | Accepts Slotted, Phillips, and Robertson Head Drivers |
| For Location | Indoor |
| Contact Material | Brass |
| Shrouded | No |
| NEMA Enclosure Rating | 1 |
| Housing Material | Nylon |
| Number of Gangs | 1 |
| Voltage Rating | 125V AC |
| AFCI | No |
| UL 94 Flammability Rating | HB |
| Current Rating | 20 A |
| Mount Type | Flush |
| Housing Color | White |
| Polarized | Yes |
| Resistance Properties | Impact Resistant |
| Flange Type | Flanged |
| Cover Type | No Cover |
| Horsepower Rating | 1 hp |
| NEMA Receptacle Configuration | L5-20R |
| Connection Orientation | Straight |
| For Environment | Dry |
| Flange Shape | Round |
| Grounding | Grounded |
| Lock Type | Twist-lock |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Weight (Lbs.) | 0.25 |
| Spring Material | Brass |
| Flange Material | Natural White Nylon |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Type | Flanged Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Horsepower - Maximum | 1 |
| Connectivity | Back Wired Screw Terminals |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Application | Insulgrip |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 125 VAC |
| Item Type | 20A Insulgrip® Flanged Receptacle |
