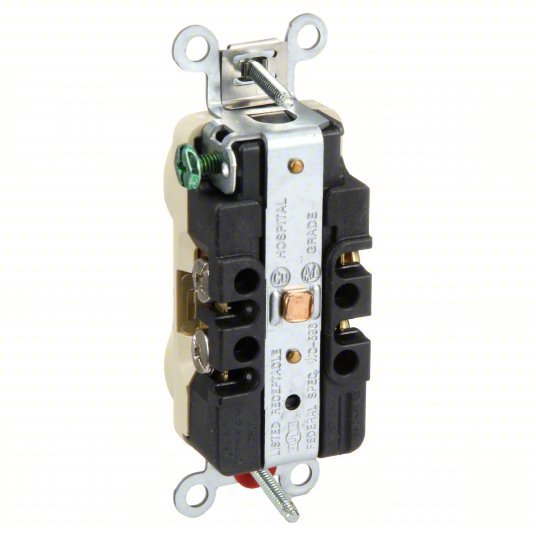

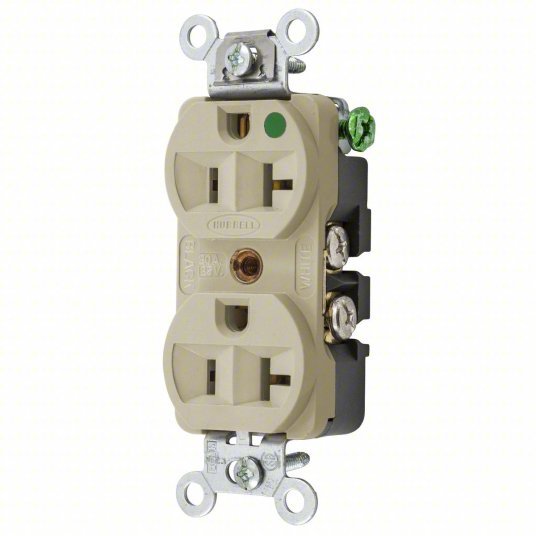

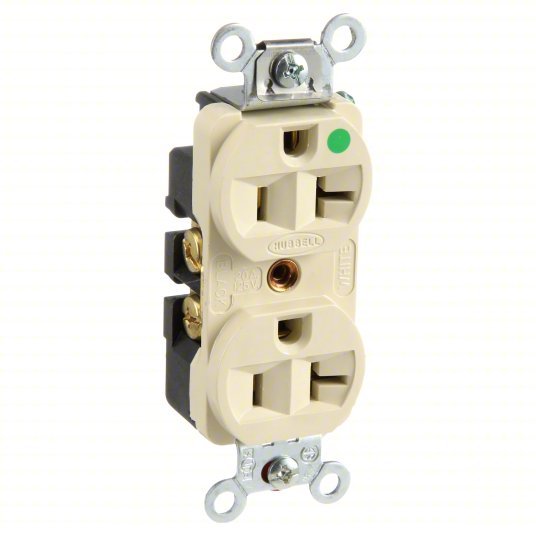

Hubbell HBL8300HI Receptacle 5-20R, 20 A, 125V AC, Ivory, 2 Poles
Original price
$49.78
-
Original price
$49.78
Original price
$49.78
$49.78
-
$49.78
Current price
$49.78
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Impact Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Heavy Use Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Voltage | 125VAC |
| Amps - Plugs and Receptacles | 20 |
| Weather Resistant - Plugs and Receptacles | No |
| Item | Traditional Duplex |
| IP Rating | IP20 |
| Material | Thermoplastic |
| Amps | 20 |
| Color | Ivory |
| Sub-Category | Duplex Receptacles |
| Power Indicator | No |
| HP | 1 hp |
| NEMA Configuration | 5-20 |
| Description | Slender/Compact |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Color - Plugs and Receptacles | Ivory |
| Number of Poles | 2 |
| Corrosion Resistant | No |
| Wiring Method - Plugs and Receptacles | Back and Side |
| Number of Gangs | 1 |
| Weather Resistant | No |
| Number of Wires | 3 |
| Mounting Type | Flush |
| Wiring Method | Back, Side |
| Outlet Type | Duplex |
| Phase | Single Phase |
| Voltage Rating | 125 V |
| Dielectric Strength | Withstands 2,000V minimum |
| Style | Finder Groove Face |
| Nema Rating | 5-20R |
| Amperage | 20 A |
| Current Rating | 20 A |
| Number Of Poles | 2-Pole |
| Carton Quantity | 1 |
| Brand | Hubbell Wiring Device-Kellems |
| Connectivity | Back and Side Wired Screw Terminals |
| Series | Hospital Grade |
| Number Of Wires | 3-Wire |
| Type | Receptacle |
| Maximum Horsepower | 1 |
| Flange Type | Non-Flanged |
| Grade | Hospital Grade Fed. Spec. |
| NEMA Enclosure Rating | 1 |
| Maximum Operating Temperature | 167 Degrees F |
| Housing Color | Ivory |
| Grounding | Grounded |
| Contact Material | Brass |
| AFCI | No |
| Connection Orientation | Straight |
| Shrouded | No |
| Resistance Properties | Impact Resistant |
| Housing Material | Thermoplastic |
| Wire Connection Type | Screw Terminals |
| Additional Electrical Protections | Standard Protection |
| Polarized | Yes |
| GFCI | No |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Wire Connection Types | Screw Terminals |
| Market | Commercial |
| Includes Mounting Hardware | Yes |
| Key Resistance Properties | Standard Resistance |
| Cover Type | No Cover |
| UL 94 Flammability Rating | V-0 |
| Minimum Operating Temperature | -40 Degrees F |
| For Location | Indoor |
| NEMA Receptacle Configuration | 5-20R |
| Horsepower Rating | 1 hp |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Mount Type | Flush |
| Additional Electrical Protection | Standard Protection |
| Surge Protection | No |
| Receptacle Type | Standard |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Poles and Wires | 2 Pole, 3 Wire |
| Certifications | FED SPEC Listed |
| Flammability | UL 94 V-0 |
| Device Grade | Compact Slender |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2,000V minimum |
| Terminal Accommodation | #12-#10 AWG stranded or solid copper wire only |
| Device Color | Ivory |
| Operating Temperatures | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Application | Slender/Compact Hospital Grade |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Horsepower - Maximum | 1 |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 20 A |
| Item Type | Traditional Duplex |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Industry Standard(s) | CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
