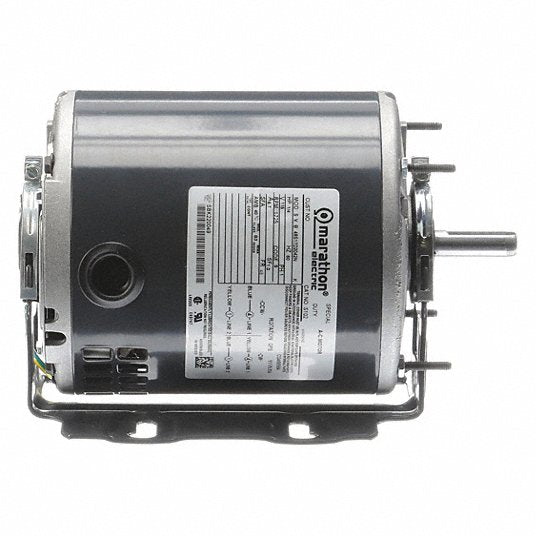

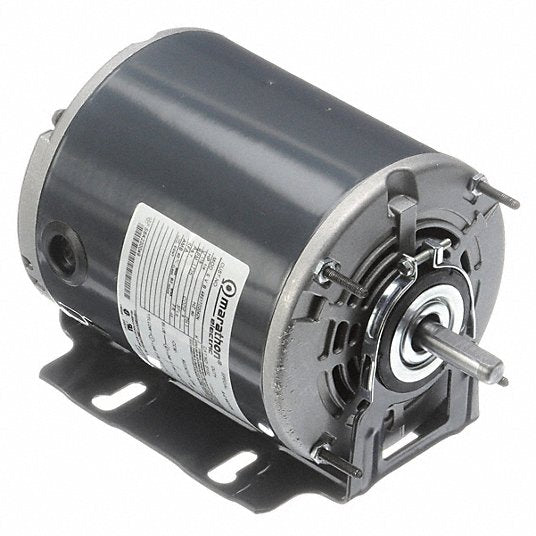

Marathon 048S17D2042 GP Motor 1/4 HP 1725 RPM 115V AC 48
Original price
$225.85
-
Original price
$225.85
Original price
$225.85
$225.85
-
$225.85
Current price
$225.85
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.7 A, 48 Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
| Motor Mounting Type | Cradle Base |
| Motor Application | General Application |
| Motor Bearings | Ball |
| RPM Range | 1,701-1,800 |
| Nameplate RPM | 1,725 |
| RPM Group | 1701-1800 |
| Motor Thermal Protection | None |
| Phase | Single |
| Motor Enclosure Design | Open Dripproof |
| Max. Ambient Temp. | 104 Degrees F |
| Motor Design | Split-Phase |
| No. of Speeds | 1 |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Item | General Purpose Motor |
| HP | 1/4 hp |
| Voltage | 115V AC |
| Ins. Class | B |
| Frame Material | Rolled steel |
| Motor Shaft Rotation | CW/CCW |
| Duty | Continuous |
| Motor Frame Material | Steel |
| Standards | CSA, UL recognized |
| Nominal Efficiency | 52.5 % |
| Frame | 48 |
| Hz | 60 Hz |
| Full Load Amps | 5.7 A |
| Motor Service Factor | 1 |
| Usable @ 208V | No |
| Weight | 13 lb |
| Duty Cycle | Continuous |
| Usable @ 200V | No |
| Motor Mounting Position | Horizontal |
