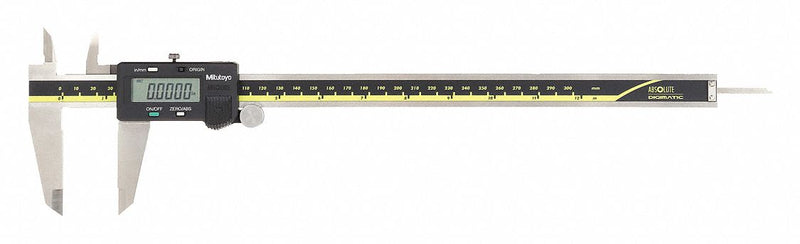

Mitutoyo 500-173-30 4-Way Digital Caliper, 0 in to 12 in /0 mm to 300 mm, Inch/Metric, +/- 0.0015 in Accuracy
Original price
$874.70
-
Original price
$874.70
Original price
$874.70
$874.70
-
$874.70
Current price
$874.70
The MITUTOYO 500-173-30 Absolute Digital Caliper is the perfect tool for taking measurements of small objects. It has a 4-way digital caliper, allowing you to take measurements in different ways. The digital caliper features a rolling thumb wheel, control buttons on the face and an absolute scale. The 0 to 12" range allows you to measure small objects with ease. With a resolution of 0.0005 in/0.01 mm, this stainless steel digital caliper is highly accurate and reliable. The MITUTOYO 500-173-30 Absolute Digital Caliper is the perfect tool for your precision measuring needs.
| Jaw Depth | 2 33/64 in |
|---|---|
| Dimension Type | Inch/Metric |
| Depth Rod Shape | Rectangular |
| Measures Outside Dimension | Yes |
| Measures Inside Dimension | Yes |
| Jaw Depth - Upper Jaw | 55/64 in |
| Battery Size | SR44 |
| Measures Depth | Yes |
| Caliper Material | Stainless Steel |
| Caliper Range | 0-12 in /0-300mm |
| Accuracy | +/- 0.0015 in |
| SPC Output | Yes |
| Resolution | 0.0005 in/0.01 mm |
| IP Rating | Not Rated |
| Absolute Positioning | Yes |
| Features | Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales |
| Caliper Grouping | Digital Caliper |
| Long Form Calibration Certificate | No |
| With Locking Nut | Yes |
| Water Resistant | No |
| Display Type | LCD |
| Functions | Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error |
| Jaw Shape | Standard |
| Left-Handed Operation | No |
| Case Type | Plastic Case |
| Jaw Material | Stainless Steel |
| Minimum Measurement - Fractional Inch | 0 in |
| Jaw Actuation Type | Thumb Wheel |
| Maximum Measurement - Inch | 12 in |
| Linear Encoder Type | Electrostatic Capacitance |
| Minimum Measurement - mm | 0 mm |
| Range | 0 in to 12 in, 0 to 300 mm |
| Dust Resistant | Yes |
| Graduations - Upper Scale | 12 in |
| Measurements | 4-Way |
| Included Certification | Certificate of Inspection |
| Maximum Measurement - mm | 300 mm |
| Includes Case | Yes |
| Graduations - Lower Scale | 0 in |
| Data Output Connection Type | Digimatic |
| Data Output Type | Cabled |
| Measures Step | Yes |
| Minimum Measurement - Inch | 0 in |
| Includes Battery | Yes |
| Repeatability | 0.0005 in/0.01 mm |
| Coolant Resistant | No |
| Compatible SPC Cable | Mfr. No. 959149; Mfr. No. 959150 |
| Inches Measured - Maximum | 12 in |
| Millimeters Measured - Maximum | 300 mm |
| Battery Type | SR44 |
| Data Output Wired Connection | Digimatic |
| Measurement Type | Depth, Inside, Outside, Step |
| Millimeters Measured - Minimum | 0 mm |
| Product Type | Digital Caliper |
| Inches Measured - Minimum | 0 in |
| Country of Origin | Japan (subject to change) |
