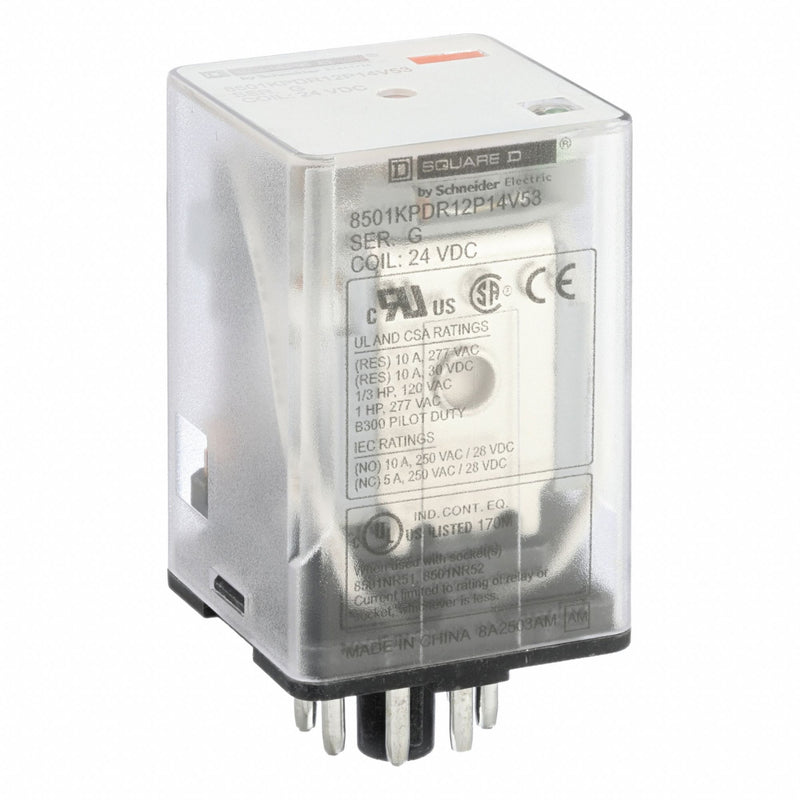

Schneider 8501KPDR12P14V53 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24V DC, DPDT, 8 Pins/Terminals
Original price
$78.92
-
Original price
$78.92
Original price
$78.92
$78.92
-
$78.92
Current price
$78.92
General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 120V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in
| Overall Height - Relay | 2.6 in |
|---|---|
| Overall Depth | 2.7 in |
| Body Width | 1.4 in |
| Body Depth | 2.1 in |
| Body Height | 1.4 in |
| Width | 1.4 in (35.56 mm) |
| Depth | 1.4 in (35.56 mm) |
| Mounting Style | Plug-In |
| Electrical Connection | 8-Pin Terminal |
| Base Shape | Octal |
| Number of Pins | 8 |
| Coil Voltage | 24V DC |
| Current Rating | 10 A |
| Contact Form | DPDT |
| Contact Rating (AC) | 10 A @ 120V |
| Contact Rating (DC) | 10 A @ 28V |
| HP @ 240V | 1/2 hp |
| Power Consumption - Relay | 1.4 W |
| Standards | CE Marked, CSA Certified, UL Listed |
| Status Indicator | LED Indicator, Mechanical Flag |
| Socket | Mfr. No. 8501NR51 or 8501NR52 |
| Contact Material | Silver Nickel |
| HP @ 120V | 1/3 hp |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Socket Code | A |
| Features | Indicator Light Relay Energised LED |
| Response Time | 20 msec |
| Motor Rated | Yes |
| Maximum Operating Temperature | 131 Degrees F |
| Power Consumption | 1.4 W |
| Compatible with Manufacturer Model Number | 8501NR51, 8501NR52 |
| Push-To-Test Method | No Button |
| Horsepower @ 240V AC | 1/2 hp |
| Pin Shape | Round |
| Series | Square D 8501K Series |
| Minimum Operating Temperature | -40 Degrees F |
| Sealing | Enclosed |
| Maximum Switching Voltage | 300V AC, 30V DC |
| Horsepower @ 120V AC | 1/3 hp |
| Compatible Manufacturer Part Number | 8501NR51, 8501NR52 |
| Compatible Manufacturer Model Number | 8501NR51, 8501NR52 |
| For Use With | 8501NR52; 8501NR51 |
| Switching Voltage | 300 V AC; 30 V DC |
| Ambient Temperature Range - Operational | -40 to 131°F (-40 to 55°C) |
| Shape Of Pins | Tubular |
| Manual Operator | Without test button |
| Breaking Capacity | 3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 10 A 30 V DC resistive control circuit UL 508 |
| Product Certifications | UL Listed; UL Recognized; CSA; CE |
| Control Circuit Voltage | 24 V DC |
| Operating Time | 20 ms - pick-up || 20 ms - drop-out |
| For Manufacturer Part Number | 8501NR51, 8501NR52 |
| Compatible with Mfr. Model Number | 8501NR51, 8501NR52 |
| Country of Origin | China (subject to change) |
