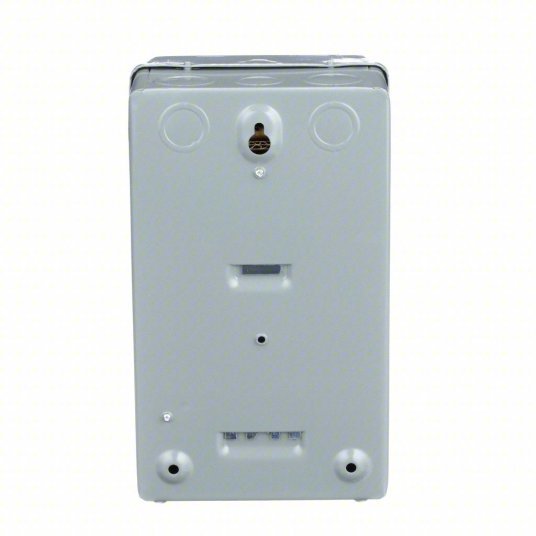

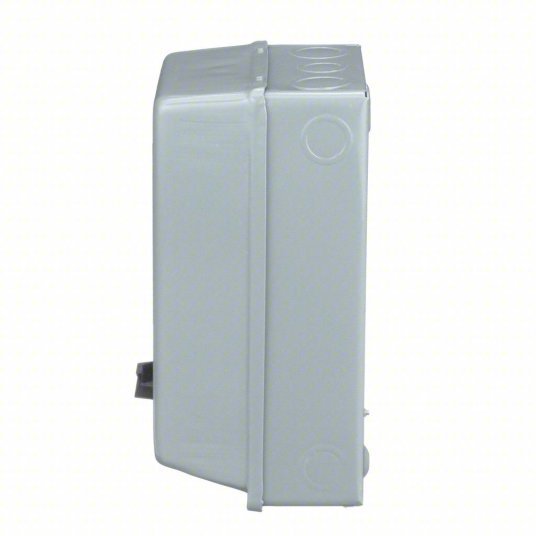

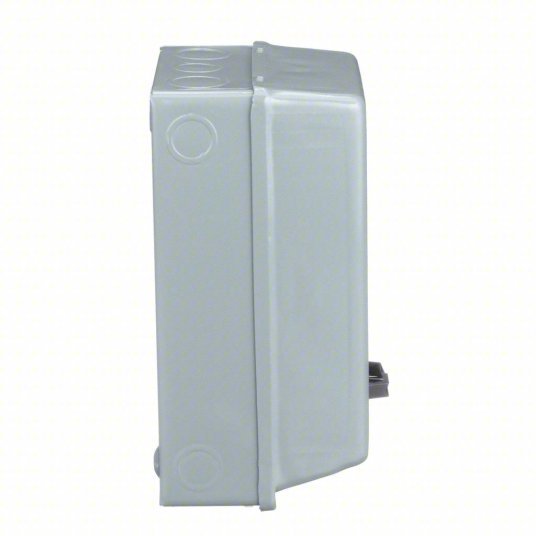

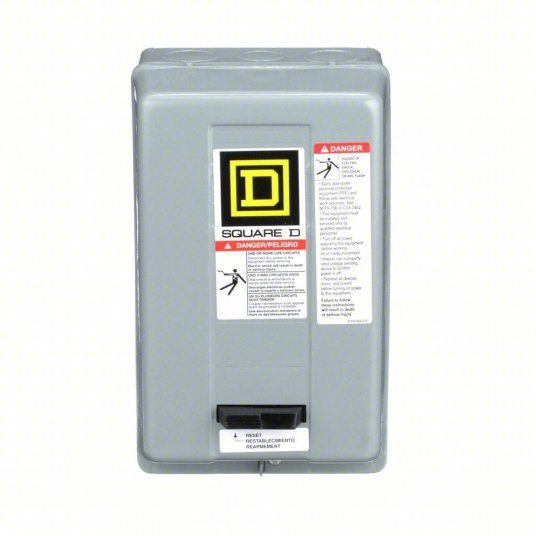

Square D 8536SCG3V01S Magnetic Motor Starter Non-Reversing, 3 Poles, NEMA Size 1, 27 A, 24V AC Coil
Original price
$797.75
-
Original price
$797.75
Original price
$797.75
$797.75
-
$797.75
Current price
$797.75
Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting Not Applicable, Overload Protection Type Thermal, Minimum Overload Relay Current Setting Not Applicable, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 24V AC, Horsepower @ Three Phase - 600V AC 10 hp
| Item | Magnetic Motor Starter |
| Coil Volts | 24V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 27 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 hp |
| Standards | CSA, UL Listed |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| Hz | 60 |
| Thermal Unit Code | B |
| Features | Pvc Free |
| Enclosure Type | Painted Steel Sheet |
| Product Type | Motor starter |
| Operating Voltage | 600V AC |
| NEMA Enclosure Rating | 1 |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 208V AC | 7 1/2 hp |
| Reversing Capability | Non-Reversing |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Minimum Overload Relay Current Setting | Not Applicable |
| Coil Voltage | 24V AC |
| Includes Auxiliary Contacts | No |
| Frequency | 60 Hz |
| Current AC | 27 A |
| Maximum Voltage Rating | 600V AC |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 600V AC | 10 hp |
| Phase | Three |
| Horsepower @ Three Phase - 240V AC | 7 1/2 hp |
| Operator Function | Not Applicable |
| Number of Auxillary Contacts | 0 |
| Includes Pilot Light | No |
| Maximum Overload Relay Current Setting | Not Applicable |
| Operator | None |
| Type Of Overload | Melting alloy 3 |
| Control Circuit Type | Separate control circuit |
| Pilot Light | Without pilot light |
| Control Units | No control units |
| Short Circuit Current Rating | Circuit-breaker: 5 kA at 600 V AC; Fuse: 5 kA at 600 V AC |
| Auxiliary Contacts | Without |
| Certifications | UL Listed; CSA; NEMA |
| Horsepower Rating | 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC |
