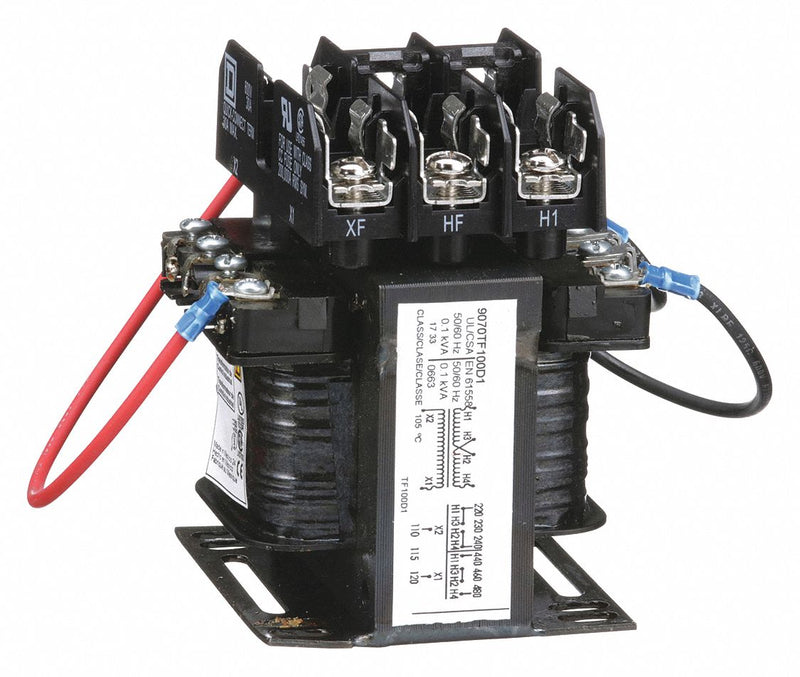

Square D 9070TF100D1 Control Transformer, 100 VA, 240/480V AC to 120V AC, 1-Phase, Fused, Foot Mount
Original price
$356.12
-
Original price
$356.12
Original price
$356.12
$356.12
-
$356.12
Current price
$356.12
Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 100 VA, Protective Device Primary and Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish
| CAD Available | Yes |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Output Voltage | 120V AC |
| Power Rating | 100 VA |
| Phase | 1 |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| NEMA Enclosure Rating | Not Rated |
| Enclosure Finish | Epoxy Resin Varnish |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Fused | Yes |
| Enclosure Style - Transformer | Open |
| Protective Device | Primary and Secondary Fuse |
| Includes | Top Mounted Fuse Block |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Primary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Enclosure Type | Open |
| Secondary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 105 °C |
| Material | Copper: winding |
| Fingersafe Cover Compatibility | FSC1 |
| Product Certifications | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Primary To Secondary Voltage | 240 x 480 V 120 V; 230 x 460 V 115 V; 220 x 440 V 110 V |
| Fuse Type | 0.41 x 1.50 in CC top |
| Temperature Rise | 55°C |
| Insulation Temperature | 221°F (105°C) |
| For Fuse Class | CC |
| Country of Origin | Mexico |
