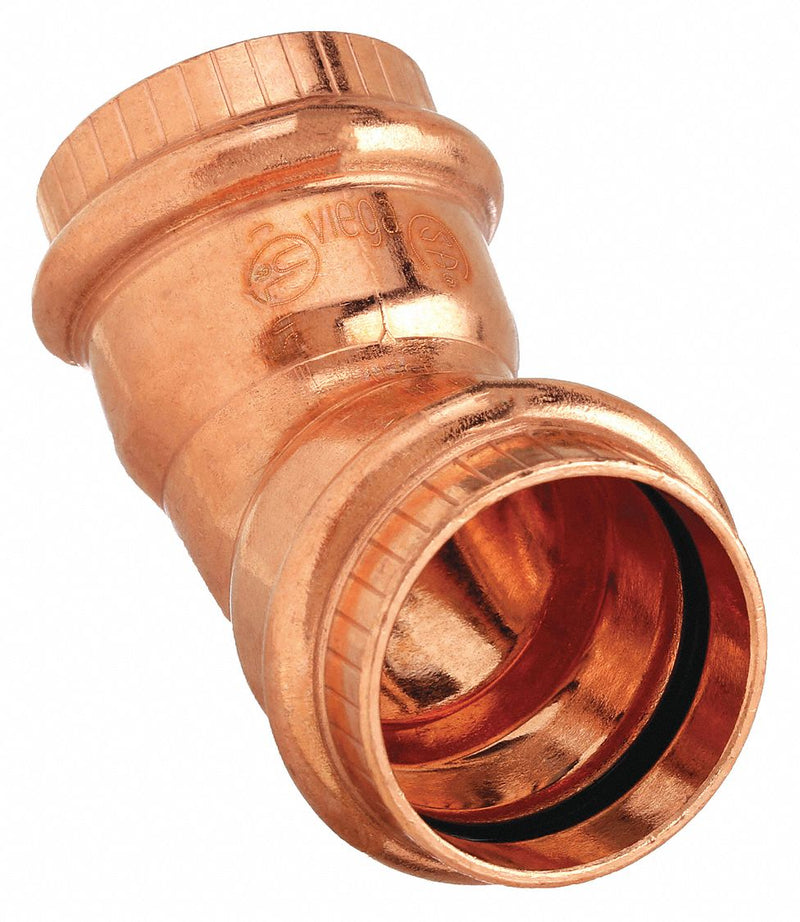

Viega 77038 45 Degree Elbow Copper, Press-Fit x Press-Fit, 1-1/2 in x 1-1/2 in Copper Tube Size
Original price
$51.95
-
Original price
$51.95
Original price
$51.95
$51.95
-
$51.95
Current price
$51.95
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 45 Degrees Elbow, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 45 Degrees Elbow |
| Fitting Connection Type | Press x Press |
| Specific Pipe Fitting Shape | 45 Degrees Elbow |
| Pipe Fitting Connection Type | Press x Press |
| Max. Pressure | 200 psi |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Basic Pipe Fitting Shape | Elbow |
| Basic Pipe Fitting Material | Metal |
| Standards | ASTM B75, ASTM B88 |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| Maximum Operating Pressure | 200 psi |
| O-Ring Material | EPDM |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Material | Copper |
| Fitting Shape | 45 Degrees Elbow |
| Fitting Side B Connection Type | Press-Fit |
| Application | Potable Water |
| Fitting Side A Connection Type | Press-Fit |
| Fitting Side 1 Connection Type | Press-fit |
| Operating Temperature - Minimum | 0 Degrees F |
| Operating Temperature - Maximum | 250 Degrees F |
| Operating Pressure - Maximum | 200 psi |
| For Media Type | Potable Water |
| Fitting Side 2 Connection Type | Press-fit |
| Center Stop Type | Dimple Center Stop |
| Connector Type | Coupling |
| Restrictions | This product has been certified by a third party to be compliant with the Safe Drinking Water Act requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | United States |
