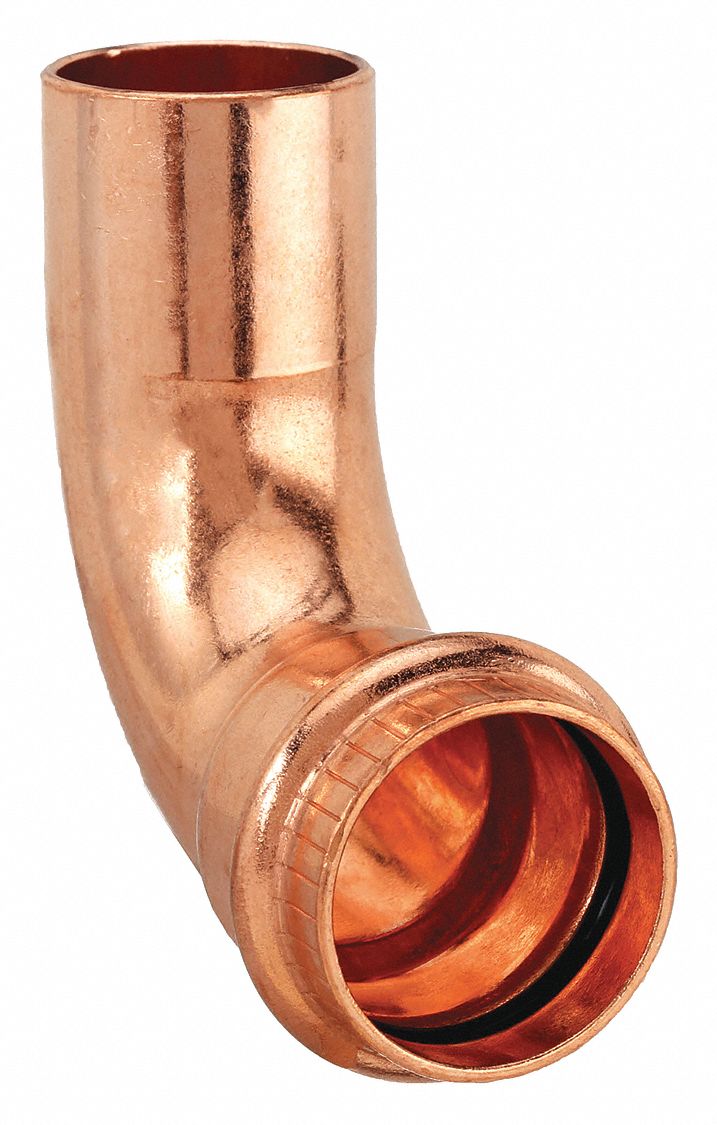

Viega 77072 90 Degree Street Elbow Copper, Press-Fit x FTG, 2 in x 2 in Copper Tube Size
Original price
$88.24
-
Original price
$88.24
Original price
$88.24
$88.24
-
$88.24
Current price
$88.24
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 2 in, Fitting Side B Copper Tube Size 2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow Adapter, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 90 Degrees Street Elbow Adapter |
| Fitting Connection Type | Press x Street |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Pipe Fitting Connection Type | Press x Street |
| Basic Pipe Fitting Material | Metal |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Standards | ASTM B75, ASTM B88 |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Shape | Elbow |
| Fitting Material | Copper |
| O-Ring Material | EPDM |
| Minimum Operating Temperature | 0 Degrees F |
| Application | Potable Water |
| Fitting Side B Connection Type | FTG |
| Fitting Shape | 90 Degrees Elbow |
| Maximum Operating Pressure | 200 psi |
| Fitting Side A Connection Type | Press-Fit |
| Maximum Operating Temperature | 250 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Fitting Side 1 Connection Type | Press-fit |
| Operating Temperature - Maximum | 250 Degrees F |
| Operating Pressure - Maximum | 200 psi |
| Connector Type | Adapter |
| For Media Type | Potable Water |
| Center Stop Type | Dimple Center Stop |
| Fitting Side 2 Connection Type | FTG |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | United States |
