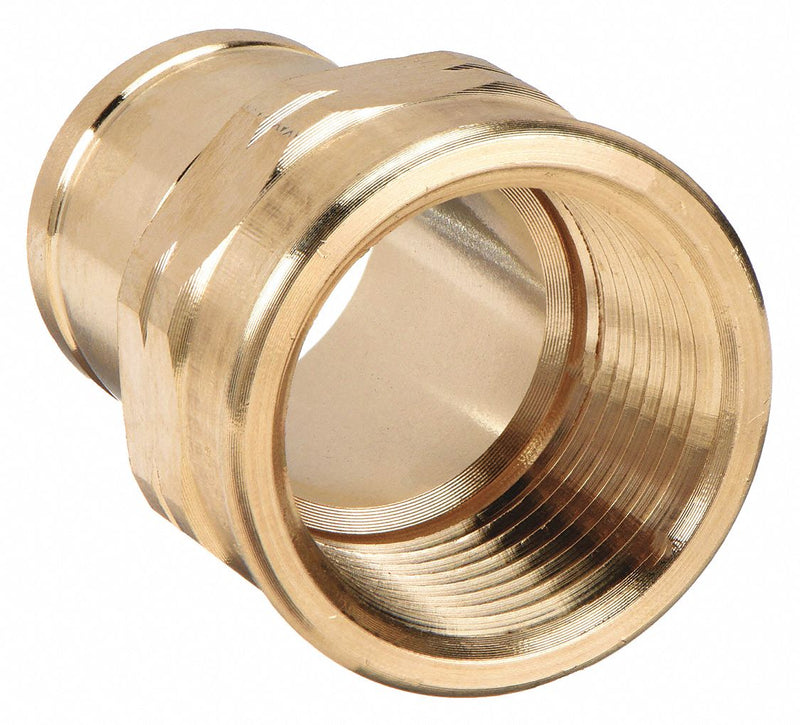

Viega Propress 79445 Crimp Adapter Fitting, Straight, 3/4 in FTG x 3/4 in FNPT, Bronze, EPDM, 200 psi
Original price
$33.45
-
Original price
$33.45
Original price
$33.45
$33.45
-
$33.45
Current price
$33.45
Crimp Adapter Fitting, Application Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 1 13/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
| Tube Fitting Material | Bronze |
|---|---|
| Specific Fitting Shape | Straight Adapter |
| Fitting Connection Type | Street x Female Pipe Thread |
| Max. Pressure | 200 psi |
| Specific Pipe Fitting Shape | Adapter |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Pipe Fitting Connection Type | Street x Female Pipe Thread |
| Standards | ABS, CRN, CRN 0A14541.5 A/B/C, CSA, CSA MSE-13, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1037, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed, ULC/ORD 213 |
| Temp. Range | 0 Degrees to 250 Degrees F |
| O-Ring Material | EPDM |
| Fitting Material | Bronze |
| Fitting Side A Connection Type | FTG |
| Fitting Shape | Straight |
| Application | Potable Water |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Side B Connection Type | FNPT |
| Minimum Operating Temperature | 0 Degrees F |
| Maximum Operating Pressure | 200 psi |
| Fitting Side 2 Connection Type | FNPT |
| Operating Temperature - Minimum | 0 Degrees F |
| Operating Temperature - Maximum | 250 Degrees F |
| Fitting Side 1 Connection Type | FTG |
| Operating Pressure - Maximum | 200 psi |
| Connector Type | Adapter |
| For Media Type | Potable Water |
| Center Stop Type | Dimple Center Stop |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | Germany |
