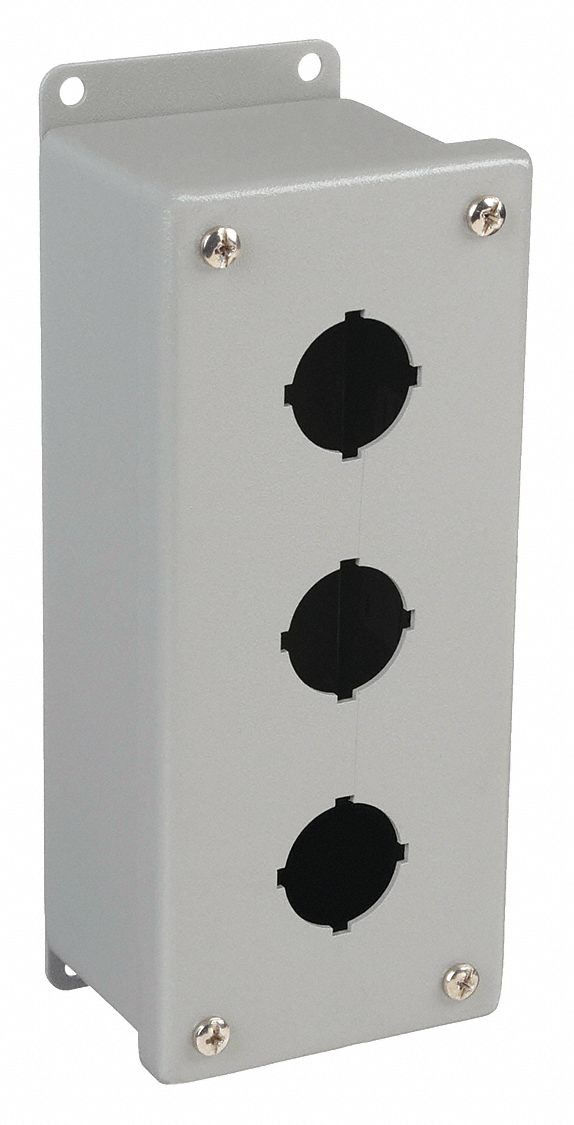

Wiegmann PB3 Push Button Enclosure, 30mm, 3 Holes, Carbon Steel, NEMA 4
Original price
$238.71
-
Original price
$238.71
Original price
$238.71
$238.71
-
$238.71
Current price
$238.71
Push Button Enclosure, Number of Columns 1, Number of Holes 3, NEMA Rating 12, 13, 4, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.00 in H x 3.25 in W x 2.81 in D, Hole Size 30 mm, Material Carbon Steel, Height 8 in, Width 3.25 in, Depth 2.81 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Oil Tight, Mounting Style External Plates, Standards cULus, UL Listed
| Number of Columns | 1 |
|---|---|
| Material | Carbon Steel |
| Number of Holes | 3 |
| NEMA Rating | 12, 13, 4 |
| Color | Gray |
| Includes | Captive Cover Screws, Closed Cell Oil Resistant Gasket |
| Type | Oil Tight |
| Standards | cULus, UL Listed |
| Mounting Style | External Plates |
| Cover Type | Pushbutton;Screw |
| Series | PB |
| Finish Type | Polyester Powder |
| Cubic Capacity | 192 cu.in |
| Construction | Continuously Welded Seams |
| Application | Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water. |
| Country of Origin | Mexico |
