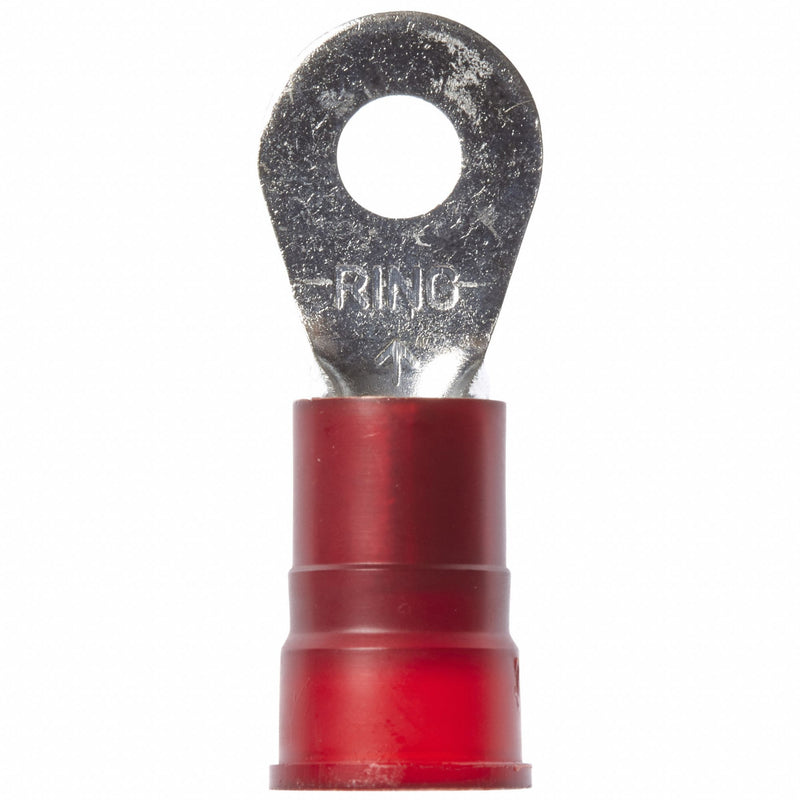

3M MN8-10R/SK Ring Terminal, Red, Nylon Insulation, #10 Stud Size, 8 AWG to 8 AWG Wire Sizes, 1, 000 V
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: United States | Shipping Weight: 1.6 lbs
Original price
$205.08
-
Original price
$205.08
Original price
$205.08
$205.08
-
$205.08
Current price
$205.08
Ring Terminal, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 8 AWG, Maximum Wire Size 8 AWG, Termination Style Crimp, Tongue Width 0.47 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.18 in, Barrel Length 0.31 in, Barrel Style Brazed, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs
| Terminal Shape | Standard Ring Tongue |
|---|---|
| Termination Style | Crimp Termination Only |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Type | Nylon |
| Contact Material | Copper |
| Maximum Voltage | 1,000 V |
| Minimum Operating Temperature | -40 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| Standards | CSA Certified, UL Listed |
| Wire Range | 8 AWG |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Max. Temp. | 221 Degrees F |
| Terminal Type | Standard |
| Seam | Brazed |
| Connection Type | Crimp |
| Compatible with Product Type | Building Wire, Fixtures or Luminaires, Signs |
| Insulation Material | Nylon |
| Hole Spacing | 0.4 in |
| Seam Style | Brazed |
| Contact Finish | Tin |
| Special Features | Corrosion-Resistant, Flared Portion of the Nylon Sleeve Offers Easy Insertion of Wires, Reliable Performance, Secure Fit |
| RoHS Compliant | Yes |
| Barrel Style | Brazed |
| Country of Origin | United States |
