Advance 71A5570-001D HID Ballast Kit 175 W Max. Bulb Watts, ANSI Code M107/M57, Probe, 120/277V AC

Advance, Magnetic, HID Ballast Kit, Ballast Start Type Probe, ANSI Code M107, M57, Metal Halide Ballast Bulb Type, Number of Bulbs Supported 1, Max. Bulb Watts 175 W, Input Voltage 120/277V AC, Input Watts 210 W, -20 Degrees F Min. Starting Temp., Ballast Factor 1, Frequency 60 Hz

Ballast Max. Lamp Watts	175
Ballast Voltage	120/208/240/277
Ballast Start Type	Probe
For Use With	Metal Halide HID Bulbs
ANSI Code	M107, M57
Ballast Item	HID Ballast Kit
Input Watts	210 W
Min. Starting Temp.	-20 Degrees F
Footnotes	6
Ballast Type	Magnetic
Number of Lamps	1

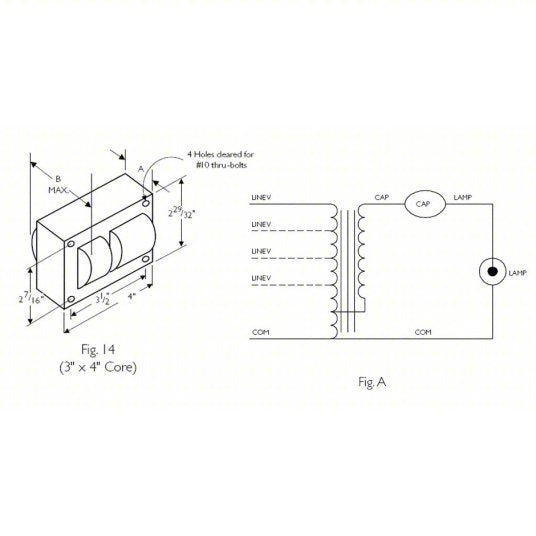

Figure Number	H1
Operating Amps @ 208V	1.04 A
Operating Amps @ 240V	0.9 A

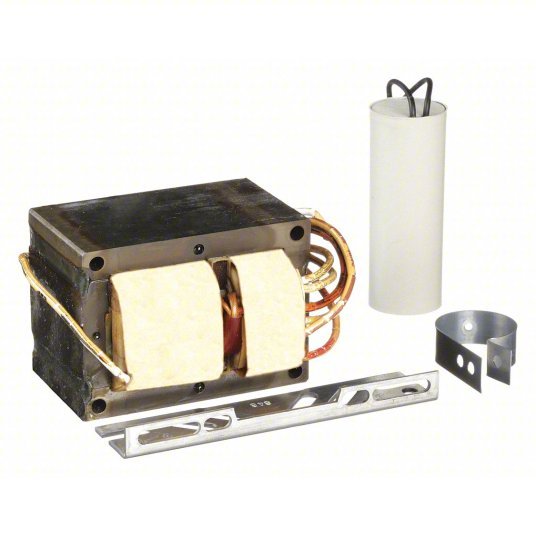

Includes	Capacitor, Coil, Core, Hardware, Mounting Bracket
Insulation Class	H
Ballast Lamp Watts	175
Operating Amps @ 120V	1.8 A
Operating Amps @ 277V	0.8 A
Ballast Family	HID Magnetic
Hz	60
Operating Amps @ 480V	0.5 A
Thermal Protection	No
Fixture Ballast Type	Core and Coil
Ballast Bulb Type	Metal Halide
Housing Material	Steel
Starter Required	No
Min. Bulb Watts	175 W
Frequency	60 Hz
Ballast Factor	1
Max. Bulb Watts	175 W
Number of Bulbs Supported	1
Standards	CSA Certificate, RoHS Compliant, ULR
Input Voltage	120/277V AC
