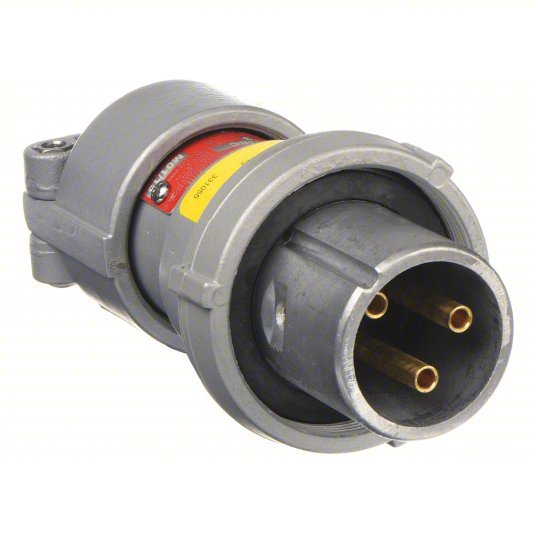

Appleton ACP3023BC Plug 30 A, 250V DC/600V AC, Style 2 Grounding, 30 hp Horsepower Rating

Plug, Current Rating 30 A, Horsepower Rating 30 hp, Housing Color Gray, Number of Poles 3, Number of Wires 2, Phase Single, Voltage Rating 250V DC, 600V AC, Wire Connection Type Wire Leads, Cap Type Flip-Up Cap, Connection Orientation Straight, Face Diameter 1.86 in, For Maximum Cable Diameter 1.125 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style Style 2, Housing Material Copper-Free Aluminum, Maximum Wire Size 8 AWG, Minimum Wire Size 10 AWG

Current Rating	30 A
Voltage Rating	600V AC
Phase	Single
Number of Poles	3
Number of Wires	2
NEMA Enclosure Rating	3, 3R, 4, 4X
Wire Connection Type	Wire Leads
Connection Orientation	Straight
Switch Rated	No
Grounding Style	Style 2
Housing Color	Gray
Cap Type	Flip-Up Cap
Standards	CSA Certified 065179, CSA Certified C22.2 No. 182.1-13, cULus E145917 (200 Amp), UL 1682, UL 50E, UL E145916, UL E145917
Resistance Properties	Fire Resistant, Heat Resistant
HP	10 hp
Amps	30 A
NEMA Rating	3, 3R, 4, 4X
Material	Copperfree Aluminum
Voltage	600V AC
Features	Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing, Neoprene Bushing Compressed by Cable Collar Prevent Entrance of Water
Finish	aluminum with epoxy powder coat
Polarized	No
Horsepower Rating	30 hp
Reverse Service	No
Insulation Material	Fiberglass-Reinforced Polyester
Housing Material Finish	Epoxy Coat with Powder Finish
Maximum Operating Temperature	40 Degrees C
Compatible with Series	Powertite
Grounding	Grounded
Minimum Operating Temperature	-25 Degrees C
Housing Material	Metallic
Mounting Box	Dead-End
Hz	50-400 Hz
