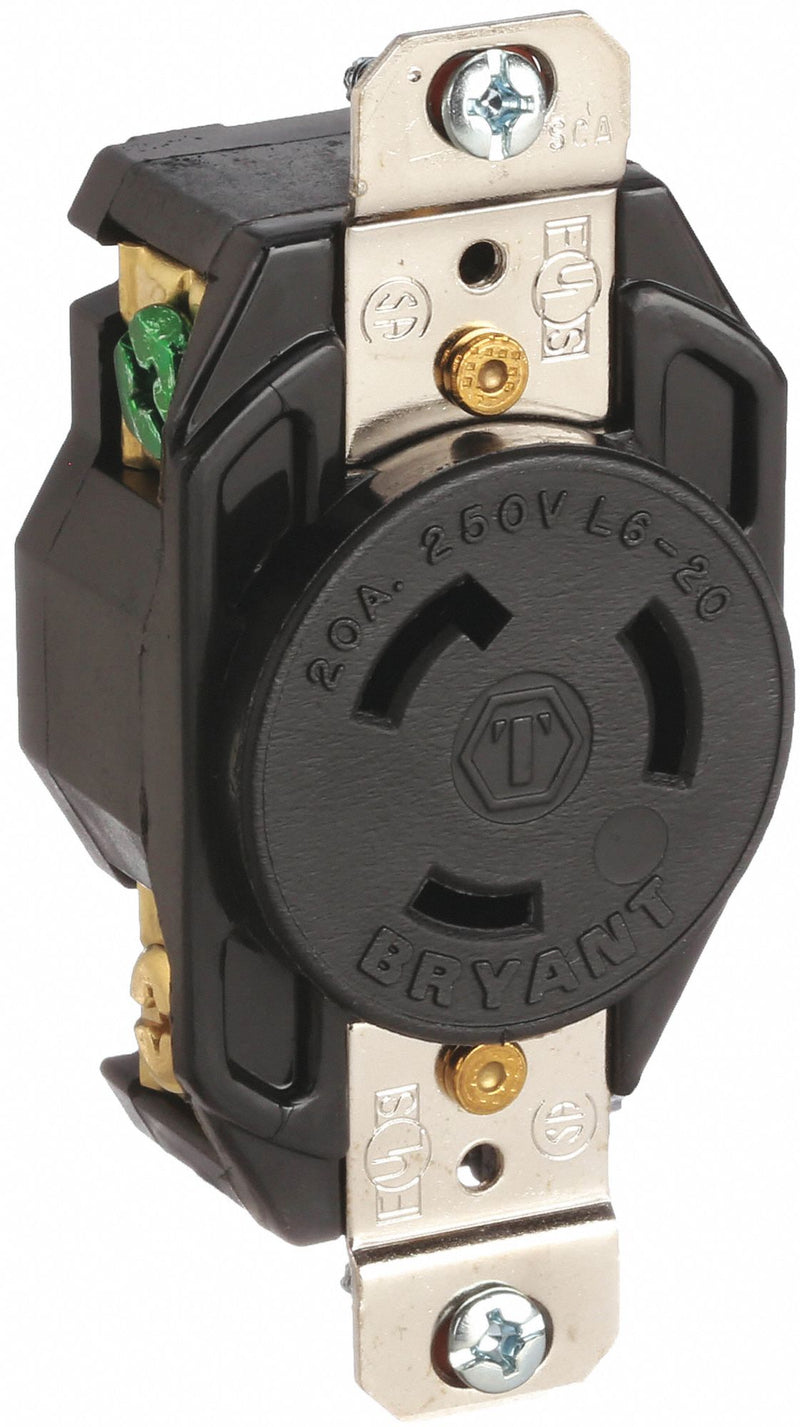

Bryant 70620FR Locking Receptacle, L6-20R, 1 Outlet, Black, 250V AC, 20 A, 2 Poles
UPC: 781786689237 | Harmonization / Schedule B : 8536.69.8000
Country of Origin: United States | Shipping Weight: 0.25 lbs
Original price
$26.69
-
Original price
$26.69
Original price
$26.69
$26.69
-
$26.69
Current price
$26.69
Locking Receptacle, Current Rating 20 A, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration L6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded
| Maximum Wire Size | 8 AWG |
|---|---|
| Minimum Wire Size | 14 AWG |
| Wire Size | #14 AWG to #8 AWG |
| Length | 3.28 in |
| Width | 1.70 in |
| Height | 1.24 in |
| Mount Hole Center-to-Center Height | 3.28 in |
| For Minimum Cable Diameter | 0.3 in |
| For Maximum Cable Diameter | 0.655 in |
| NEMA Receptacle Configuration | L6-20R |
| Current Rating | 20 A |
| Voltage Rating | 250V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | Black |
| Mount Type | Flush |
| Cover Type | No Cover |
| Flange Type | Non-Flanged |
| Standards | UL 498 |
| Resistance Properties | Corrosion Resistant |
| Mounting Type | Flush Mount |
| Wiring Style | Standard |
| Grade | Industrial |
| Material | Nylon |
| Includes | Mounting Hardware |
| For Location | Indoor |
| Shrouded | No |
| Housing Material | Nylon |
| Polarized | Yes |
| For Environment | Dry |
| Horsepower Rating | 2 hp |
| Includes Mounting Hardware | Yes |
| Market | Industrial |
| Contact Material | Copper Alloy |
| Style | Single Receptacle |
| Features | Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention |
| Material - Mounting Hardware | Screw Mounting |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Amperage Rating | 20 A |
| Amps | 20 |
| Number of Outlets | 1 |
| Flange Material | Composite |
| Hub Type | Dead End |
| Midget Locking | No |
| Connection Orientation | Straight |
| NEMA Enclosure Rating | Not Rated |
| IP Rating | Not Rated |
| Series | Twist Lock |
| Number of Gangs | 3 |
| Country of Origin | United States |
