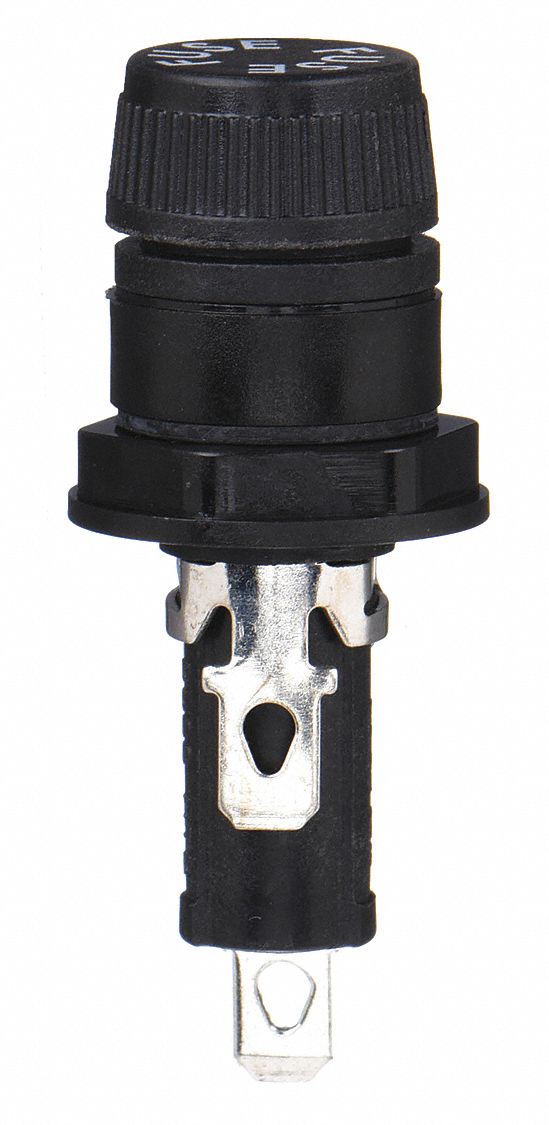

Bussmann HTB-42I-R Panel Mount Fuse Holder, For Fuse Size 1/4 in x 1 1/4 in, 1 Pole, 20 A Max, 250 V AC
UPC: | Harmonization / Schedule B : 8536.90.8085
Country of Origin: Mexico | Shipping Weight: 0.03 lbs
Original price
$13.61
-
Original price
$13.61
Original price
$13.61
$13.61
-
$13.61
Current price
$13.61
Fuse holders for cylindrical fuses use a round, top-loading design for quick fuse replacement and a rear terminal connection for secure circuit integration. Enclosing the fuse within the holder helps prevent accidental contact with energized components, offering a safe and reliable solution for fixed panel installations.
| Compatible Fuse Series | 311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB |
|---|---|
| AC Voltage Rating | 250 V AC |
| Body Material | Thermoplastic |
| Compatible Fuse Diameter | 1/4 in |
| Compatible Fuse Dimensions (Dia. x Length) | 1/4 in x 1-1/4 in |
| Compatible Fuse Length | 1-1/4 in |
| Current - Maximum | 20 A |
| Current - Minimum | 0 A |
| DC Voltage Rating | 125 V DC |
| Fits Fuse Class or Type | Glass and Ceramic |
| Fuse Block Style | Non-Rejection |
| Fuse Holder Cap Style | Screw Knob |
| Fuse Holder Mounting Style | Panel |
| Fuse Holder Termination Type | 3/16 in Quick Connect |
| Mounting Hole Size | 1/2 in x 29/64 in dia |
| Number of Poles | 1 |
| Overall Diameter | 0.25 in |
| Overall Length | 0.25 in |
| Visual Indication | Non-Indicating |
| Country of Origin | Mexico |
