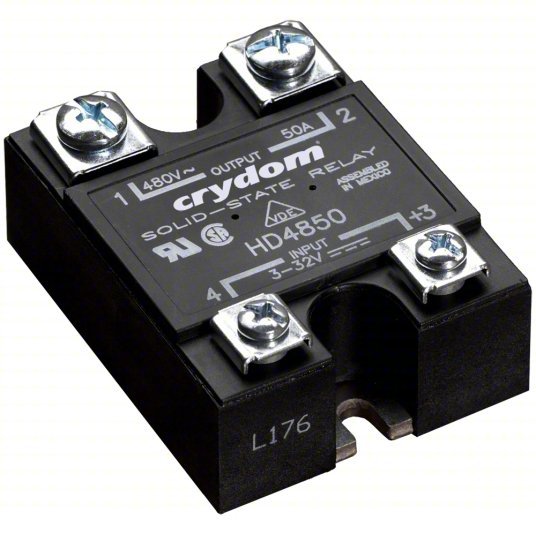

Crydom HD4850-10 Solid State Relay Surface Mounted, 50 A Max Output Current, SCR, AC Output

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 12 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 50 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Random/Instantaneous, Output Voltage Range 48 to 530V AC, Standards CE Compliant to EN60950-1, CSA Certified, UL Listed, VDE Approved, Switch Component Type SCR, Current Type AC, Finger Safe No, Mounting Style Panel, Switch Configuration Form A

Input or Control Voltage	4 to 32V DC
Output or Controlled Voltage Range	48 to 530V AC
Max. Output Amps w/Heat Sink	50 A
Heat Sink	Not Included
Switch Type	SCR
Contact Form - Relay	SPST-NO
Relay Turns On At	Instantaneous/Random
Input Power Consumption (Burden)	0.1W
Mounting - Relay	Surface
Input Voltage	4 to 32V DC
Voltage Output	48 to 530VAC
Item	Solid State Relay
Standards	CE Compliant to EN60950-1, CSA Certified, UL Listed, VDE Approved
Phase	1
Finger Safe	No
Max. Output w/Heat Sink	50A
Mounting	Surface
Input or Control Voltage Range	4 to 32VDC
Max. Output Amps Without Heat Sink	12.0 A
Case Color	Black
Turns On At	Instantaneous
Input Current	12 mA
Switch Component Type	SCR
Voltage Type	AC Output
Power Factor	0.5
Dielectric Strength	4,000V AC
Switch Configuration	Form A
Drop Out Voltage	1.15V DC
Maximum Output Current with Heat Sink	50 A
Status Indicator	Green LED Indicator
Electrical Connection	Screw Clamp
Frequency	50/60 Hz
Maximum Output Current without Heat Sink	12 A
Weight	2.6 oz
Series	HD Series
Insulation Resistance	1,000 megaohm
Maximum Operating Temperature	176 Degrees F
Mounting Style	Panel
Response Time	0.5 msec
Minimum Operating Temperature	-40 Degrees F
Output Voltage Range	48 to 530V AC
Output Switching Mode	Random/Instantaneous
Current Type	AC
Maximum Capacitance	8 pF
Housing Material	Aluminum
