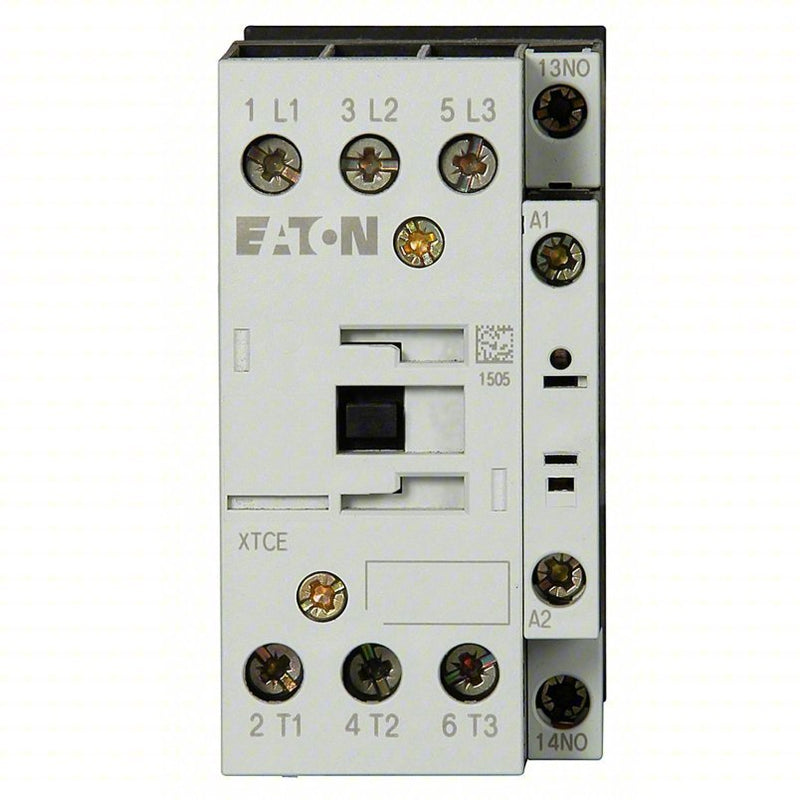

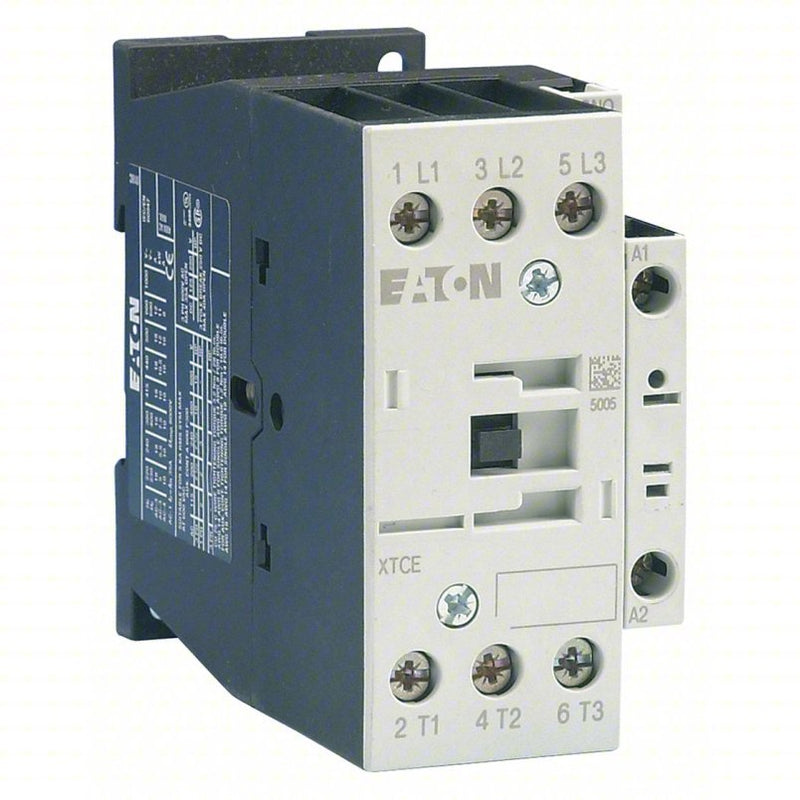

Eaton XTCE025C10B IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 240V AC Coil, 1NO, C Frame Size

IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 220/240V AC, Number of Poles 3, Full Load Current - Inductive 25 A, Full Load Current - Resistive 45 A, Reversing Capability Non-Reversing, Overall Height 2 in, Overall Width 3.5 in, Terminal Connection Type Screw Terminals, Frame Size C, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 1, Contactor Style IEC

Full Load Amps-Inductive	25 A
Full Load Amps-Resistive	45 A
Number of Poles	3
Coil Volts	240 V AC
Reversing	No
HP @ 1 Phase - 120V	2 hp
HP @ 1 Phase - 240V	5 hp
HP @ 3 Phase - 208V	7 1/2 hp
HP @ 3 Phase - 575V	20 hp
HP @ 3 Phase - 240V	10 hp
Enclosure NEMA Rating	No Enclosure
HP @ 3 Phase - 480V	15 hp
Aux. Contact Configuration	1NO
Hz	50/60
Auxiliary Contact Form	1NO
Action	Non-Reversing
Standards	CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Frame / Series / Class / Code	Frame C
HP @ 1 Phase - 230V	5
Series	XT
Type	Full voltage non-reversing contactor
IP Rating	IP20
Electrical Connection	Screw Terminals
Contact Configuration	1 NO
Product Name	Eaton XT IEC contactor
Coil Voltage	220/240V AC
Certifications	UL Listed;CSA Certified;IEC 60947;EN 60947
Hp Rating - Max	2, 3, 5/ 7.5, 10, 15, 20 hp (1/3PH @115,200,230/200,230,460,575 V)
Frequency Rating	50-60 Hz
Compliances	CE Marked
Amperage Rating	25A
Number of Auxillary Contacts	1
Contactor Style	IEC
NEMA Enclosure Rating	No Enclosure
Horsepower @ Single Phase - 240V AC	5 hp
Full Load Current - Resistive	45 A
Horsepower @ Three Phase - 208V AC	7 1/2 hp
Terminal Connection Type	Screw Terminals
Mounting Style	DIN Rail, Panel
Maximum Operating Temperature	122 Degrees F
Minimum Operating Temperature	-13 Degrees F
Horsepower @ Three Phase - 600V AC	20 hp
Response Time	Less Than14 msec (AC Operated Opening Delay), Less Than22 msec (AC Operated Closing Delay), Less Than30 msec (DC Operated Opening Delay), Less Than47 msec (DC Operated Opening Delay)
Embedded Surge Suppressor	Yes
Includes Auxiliary Contacts	Yes
Reversing Capability	Non-Reversing
Maximum Voltage Rating	690V AC
Frequency	50/60 Hz
Full Load Current - Inductive	25 A
Horsepower @ Three Phase - 240V AC	10 hp
Mechanical Operating Durability	10,000,000
Horsepower @ Single Phase - 120V AC	2 hp
Horsepower @ Three Phase - 480V AC	15 hp
Electrical Operating Durability	300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
