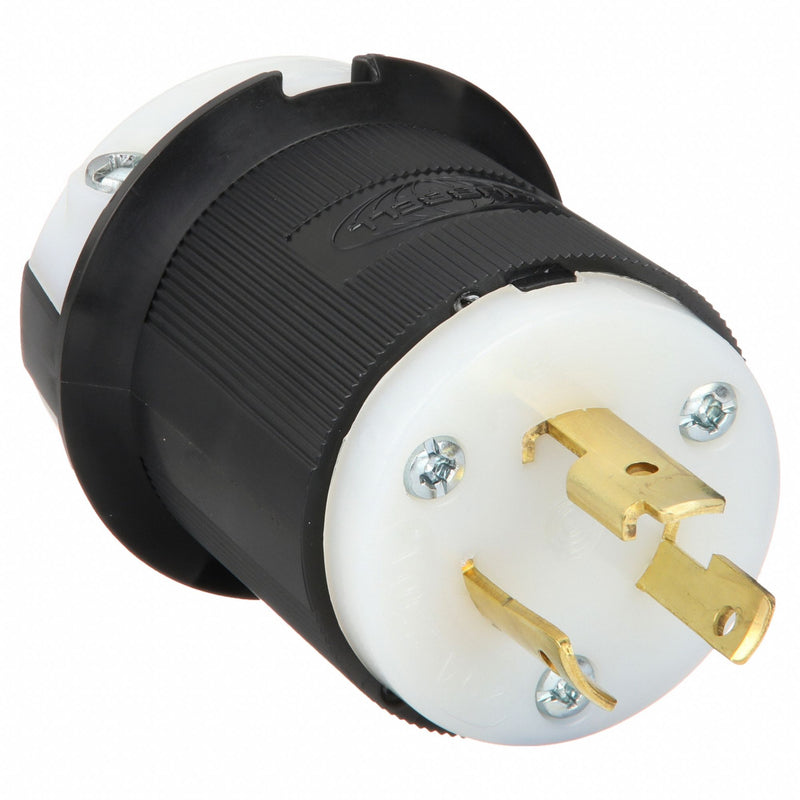

Hubbell HBL2321 Locking Plug, L6-20P, Black/White, 250V AC, 20 A, 2 Pole, 3 Blade
UPC: 783585037820 | Harmonization / Schedule B : 8536.69.4020
Country of Origin: United States | Shipping Weight: 0.3 lbs
The HUBBELL 20A Twist-Lock Plug (L6-20P) is a locking plug intended for use in industrial settings. Rated for 20 amps and 250V AC, this plug features a ribbed nylon housing. Key Features of the HUBBELL L6-20P Locking Plug: Blade Material: Brass blades Housing Material: Nylon construction Cord Grip Design: Designed to reduce strain on terminations Wire Entry: Clear, funnel-shaped entry Dust Shield: Integral dust shield Flammability Rating: Meets UL94 HB requirements Temperature Range: Rated for operation up to 75°C; minimum -40°C without impact Horsepower Rating: Suitable for applications up to 2 hp at specified voltage/current Connection Orientation & Style: Straight connection with standard wiring style using screw terminals. IP Rating & Use Conditions: IP20 rating; suitable for dry, indoor environments only. Pole/Wire Configuration: Two poles, three wires; polarized design assists with alignment during installation.
| Cord Size | 0.360 in to 0.930 in |
|---|---|
| Maximum Wire Size | 8 AWG |
| Outside Diameter | 2.26 in |
| For Minimum Cable Diameter | 0.36 in |
| Body Length | 2.26 in |
| Minimum Wire Size | 16 AWG |
| Face Diameter | 1.97 in |
| For Maximum Cable Diameter | 0.93 in |
| Length | 2.26 in |
| Wire Rope Length | 2.26 in |
| Overall Length | 2.26 in |
| NEMA Plug Configuration | L6-20P |
| Current Rating | 20 A |
| Voltage Rating | 250V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black, White |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Grade | Industrial |
| Material | Nylon |
| IP Rating | IP20 |
| Boot Code | B |
| Minimum Operating Temperature | -40 Degrees C |
| Maximum Operating Temperature | 75 Degrees C |
| Housing Material | Nylon |
| Polarized | Yes |
| For Environment | Dry |
| Market | Industrial |
| For Location | Indoor |
| Blade Material | Brass |
| Horsepower Rating | 2 hp |
| Flammability | HB or better per UL94 or CSA 22.2 No. 0.6 |
| Antimicrobial | No |
| Amps | 20 |
| UL 94 Flammability Rating | HB |
| Country of Origin | United States |
