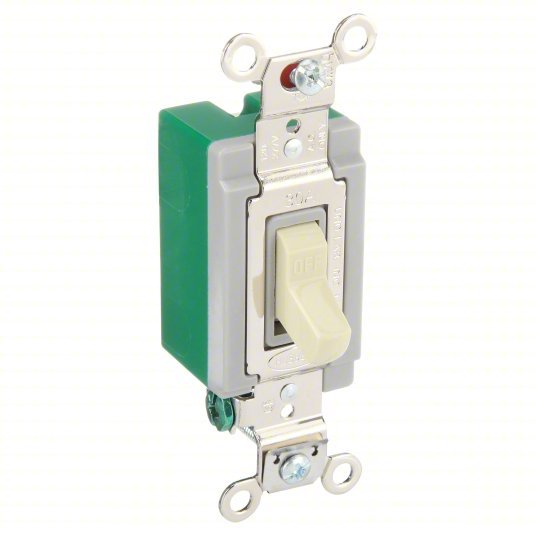

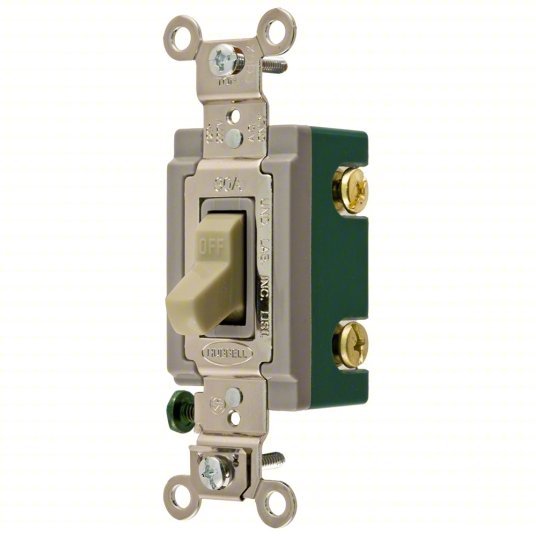

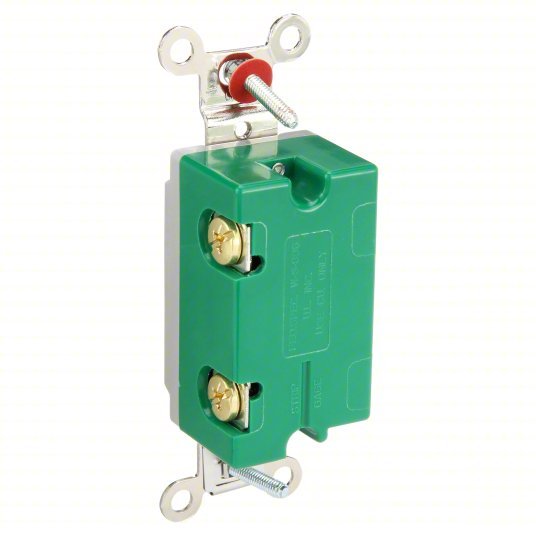

Hubbell HBL3031I Wall Switch Toggle Switch, Single Pole, Ivory, 30 A, Screw Terminals

Wall Switch, Color Ivory, Current Rating 30 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring

Switch Type	Single Pole
Switch Style	Toggle
Amps AC	30 A
Color	Ivory
Voltage AC	120 to 277
Locking	No
Switch Function	Maintained
Wiring Method	Back, Side
Application Environment	Industrial
Rated HP	2
Antimicrobial	No
Standards	UL Listed
Voltage	120/277V AC
Wire Connection Type	Screw Terminals
Switch Material	Nylon
Maximum Operating Temperature	75 Degrees C
UPC	783585434520
Resistance Properties	Shatter and Crack Resistant, Impact Resistant
Current Rating	30 A
Horsepower Rating	2 hp
Minimum Operating Temperature	-40 Degrees F
Number of Switches	1
Market	Industrial
Voltage Rating	120/277V AC
Style	Single Pole
Type	Toggle
Operating Temperature	Max. continuous: 75°C; Min. continuous: -40°C without impact
Switch Handle Positions	2
Flammability	UL 94V-2
Temperature Rise	30°C maximum at rated current
Max. Continuous Current	30A
Product Type	Toggle-switches
Operating Temperatures	Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Overload	Minimum 4.8 times rated current for 100 cycles
Listing and Certifications	UL Listed and CSA Certified
Max. Working Voltage	277V AC
Switch Grade	Industrial
Dielectric Voltage	Withstands 1500V AC minimum for 1 minute
Wiring Style	Back and Side Wired
Terminal Accommodations	#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Toggle Color	Ivory
Amperage	30A
Voltage Rating Description	120-277 VAC
Series	Extra Heavy Duty
Current / Amperage Rating	30 A
Amperage Rating	30 A
Application	Back and Side Wired
Dielectric Strength	Withstands 1500V AC minimum for 1 minute
Number Of Poles	Single Pole
Industry Standard(s)	UL Listed
Performance	Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 30A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Connectivity	Back and Side Wired
Temperature Rise - Max.	30°C maximum at rated current
