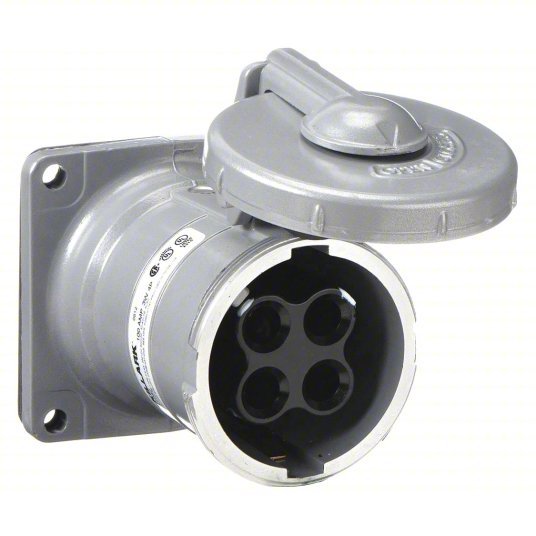

Hubbell VR1042 Pin and Sleeve Receptacle 100 A, 600V AC/250V DC, Style 2 Grounding, Gray, Receptacle Only
Original price
$925.77
-
Original price
$925.77
Original price
$925.77
$925.77
-
$925.77
Current price
$925.77
Pin and Sleeve Receptacle, Current Rating 100 A, Flange Type Flanged, Grounding Style Style 2, Hazardous Location Specification Not Applicable, IP Rating Not Rated, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Three, Shrouded Yes, Voltage Rating 600V AC/250V DC, Cap Type Flip-Up and Screw Cap, Connection Orientation Straight, Grounding Grounded, Housing Color Gray, Housing Material Copper-Free Aluminum, Market Industrial, Power Indicating Light No
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Grounding Style | Style 2 |
| Material | Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish |
| NEMA Rating | 4x |
| Voltage | 600V AC/250V DC |
| Amps | 100 A |
| Standards | CSA Certified LR111846, UL E10757 |
| Body Material - Pin and Sleeve | Copper-Free Aluminum |
| Type | Pin & Sleeve |
| Receptacle Type | Pin and Sleeve |
| Use With | Suitable for Indoor Or Outdoor Use, Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, ReNeries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food Processing Facilities |
| Features | Boxes Come with a Green Grounding Screw |
| Amps - Plugs and Receptacles | 100 A |
| Reverse Service | No |
| Connection Orientation | Straight |
| Number of Gangs | 1 |
| Power Indicating Light | No |
| Shrouded | Yes |
| Wire Connection Type | Spring Clamp Terminals |
| Flange Type | Flanged |
| Contact Material | Brass |
| Polarized | Yes |
| Voltage Rating | 600V AC/250V DC |
| Housing Material | Copper-Free Aluminum |
| Market | Industrial |
| For Environment | Cold, Corrosive, Hazardous Location, Wet |
| IP Rating | Not Rated |
| Housing Material Finish | Baked Powder Epoxy/Polyester Coated |
| Current Rating | 100 A |
| Housing Color | Gray |
| NEMA Enclosure Rating | 4X |
| Grounding | Grounded |
| Cap Type | Flip-Up and Screw Cap |
| For Location | Indoor, Outdoor |
| Hz | 50-400 Hz |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Series | VersaMate |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Frequency Rating | 50-400 Hz |
| Amperage Rating | 100 A |
| Style | Style II |
