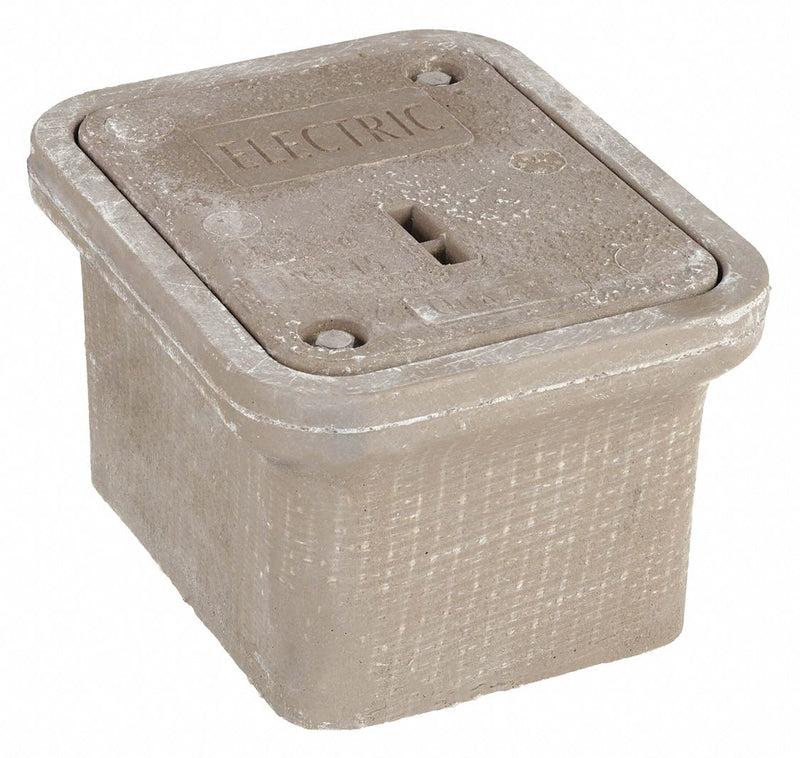

Quazite PC0608Z80017 Underground Enclosure Assembly, 8 1/2 in x 6 1/2 in x 6 in Usable Int., Cover Logo Electric
UPC: 662037205652 | Harmonization / Schedule B : 6810.99.0080
Country of Origin: United States | Shipping Weight: 19.52 lbs
Original price
$406.94
-
Original price
$406.94
Original price
$406.94
$406.94
-
$406.94
Current price
$406.94
Underground Enclosure Assembly, Style - Underground Enclosure PC, Cover Logo Electric, Usable Interior Length 8 1/2 in, Usable Interior Width 6 1/2 in, Usable Interior Height 6 in, Overall Length 11 in, Overall Width 9 in, Overall Height 6 3/4 in, Cover Bolt Type (2) 3/8-16 x 1 1/2 UNC Stainless Steel Hex Head Bolts, Load Rating - Underground Enclosure 15,000 lb
| Overall Height | 6-3/4 in |
|---|---|
| Overall Length | 11 in |
| Overall Width | 9 in |
| Usable Interior Height | 6 in |
| Usable Interior Width | 6-1/2 in |
| Usable Interior Length | 8-1/2 in |
| Cover Pull Slot Size | 1/2 in x 2 in |
| Nominal Length (In.) | 8-1/2 |
| Nominal Dimension | 8-1/2"L x 6-1/2"W x 6"H |
| Nominal Height (In.) | 6 |
| Nominal Width (In.) | 6-1/2 |
| Wire Rope Length | 11 in |
| CAD Available | Yes |
| Cover Logo | Electric |
| Load Capacity - Maximum | 15,000 lb |
| Bottom Style | Open |
| Assembly Style | PC |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 1-1/2 UNC |
| Material | Monolithic Polymer Concrete |
| Color | Gray |
| Includes | Cover |
| Standards | UL Listed to ANSI/SCTE 77 2007 Tier 15 |
| Description/Special Features | Non-Deliberate Traffic Only, Stackable |
| Country of Origin | United States |
