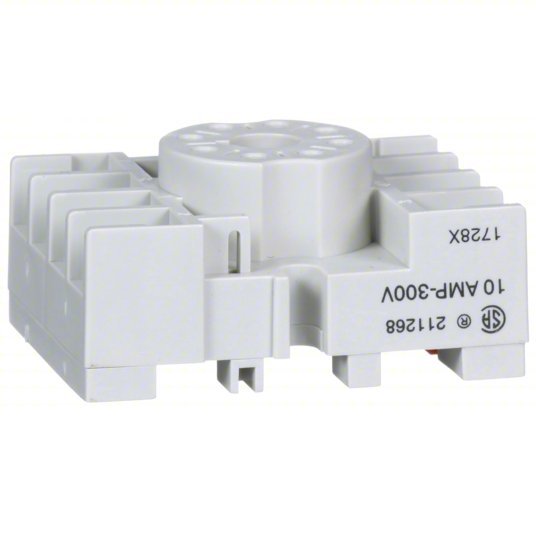

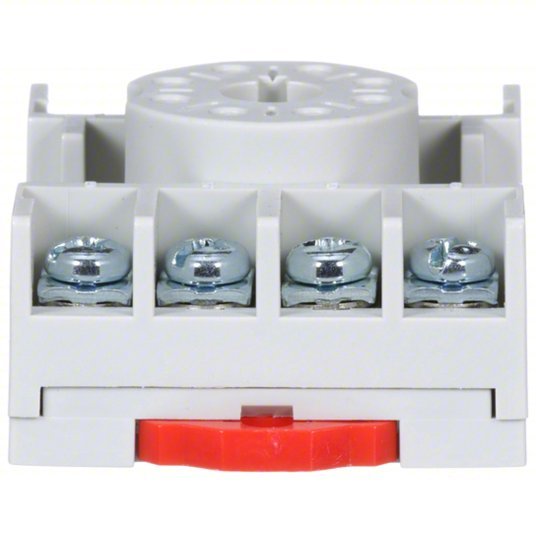

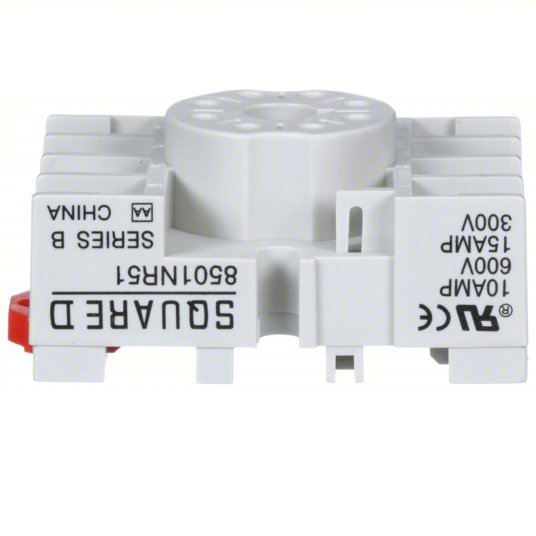

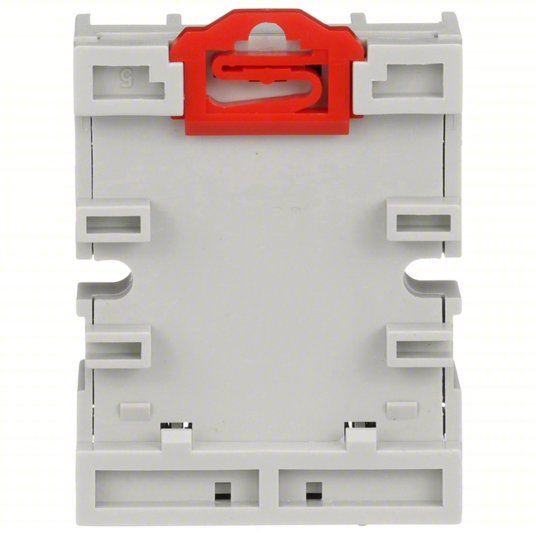

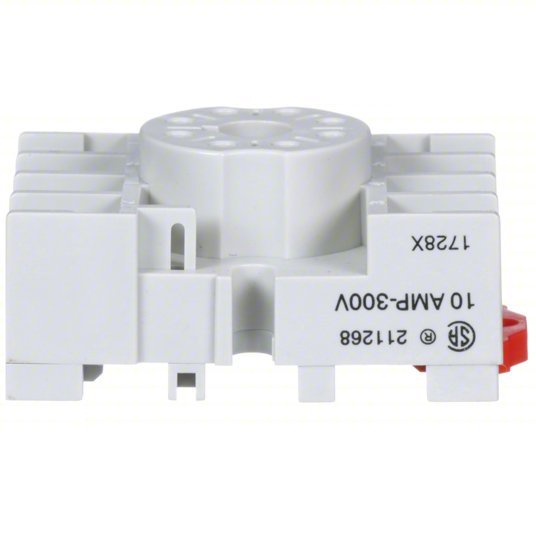

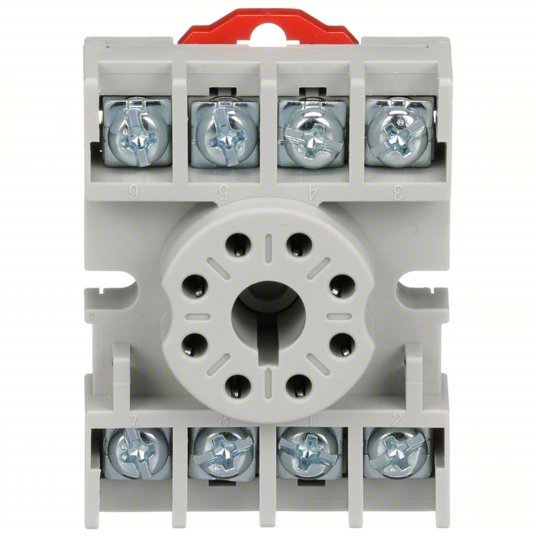

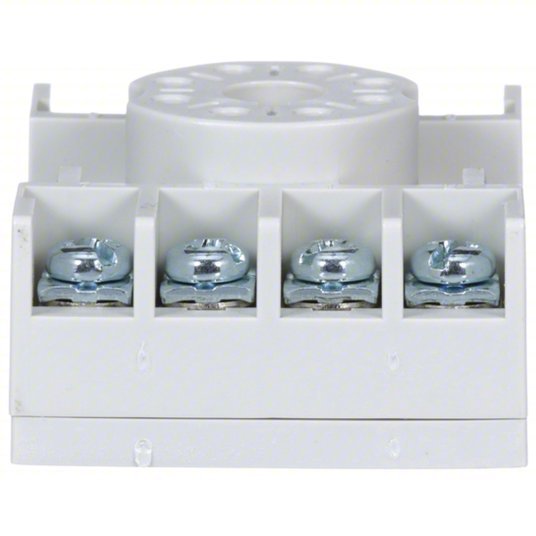

Schneider 8501NR51 Relay Socket 15 A Rating, DIN-Rail & Surface Socket Mounting, 8 Pins, A Socket, Std

$23.69 - $23.69
$23.69
$23.69 - $23.69
$23.69
Request a quote

The Schneider 8501NR51 Relay Socket delivers versatile mounting options with both DIN-Rail and surface compatibility. Engineered for industrial applications, this 8-pin A Socket features a robust 15 A rating for reliable performance in demanding control systems. Its standard configuration ensures seamless integration with compatible relay components in electrical installations.

Socket Type - Relay Standard
Base Style - Relay Socket Octal
Contact Form - Relay Socket DPDT
Mounting - Relay DIN Rail, Surface
Electrical Connection - Relay Socket Screw Clamp
Number of Pins - Relay 8
Socket Code A
Contact Rating - Relay Socket 15A @ 300V AC
Color White
Standards CE Certified, CSA Certified, UL Recognized
Number of Pins 8
Voltage 250VAC
Item Relay Socket
Socket Type Standard
Contact Rating 15A @ 300VAC
Terminals Screw
Mounting DIN Rail/Surface
Status Indicator None
Socket Style Octal
Mounting Style DIN Rail & Surface
Number of Terminals 8
Base Style Octal
Contact Form DPDT
Contact Rating (AC) 15 A @ 300V, 5 A @ 600V
Electrical Connection Screw Clamp
Pin Shape Round
Current Rating 15 A
Compatible Relays JCK Series, Square D 8501K Series
Mounting Support DIN rail || panel
Product Or Component Type Relay Socket
Line Rated Current 15 A 300 V AC || 5 A 600 V AC
Pin Number 8
Product Certifications UL Recognized || CSA || CE
Shape Of Pin Tubular
