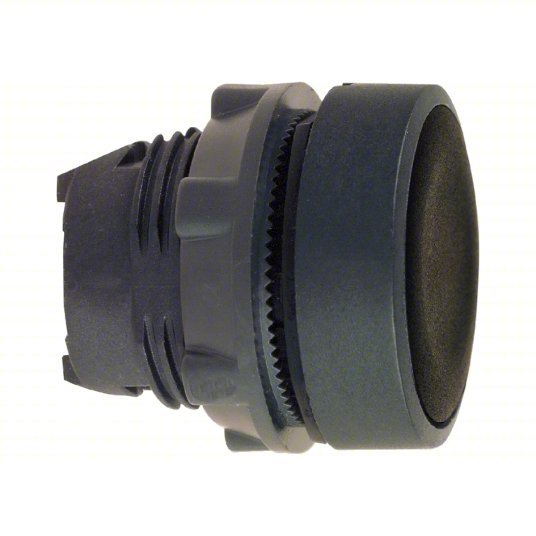

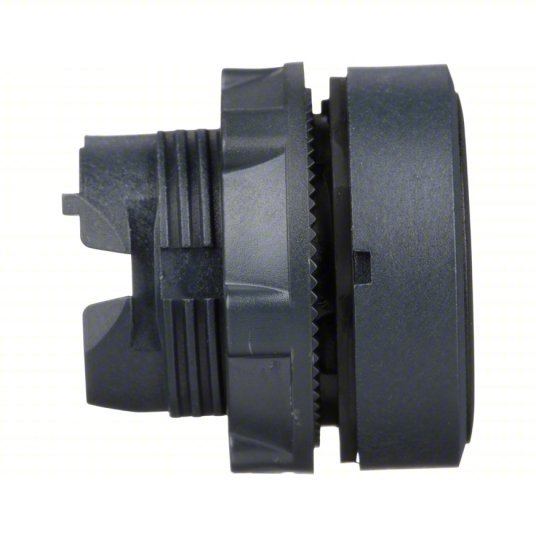

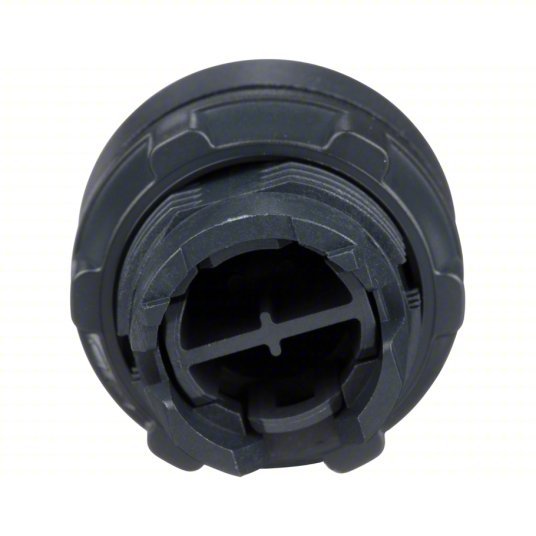

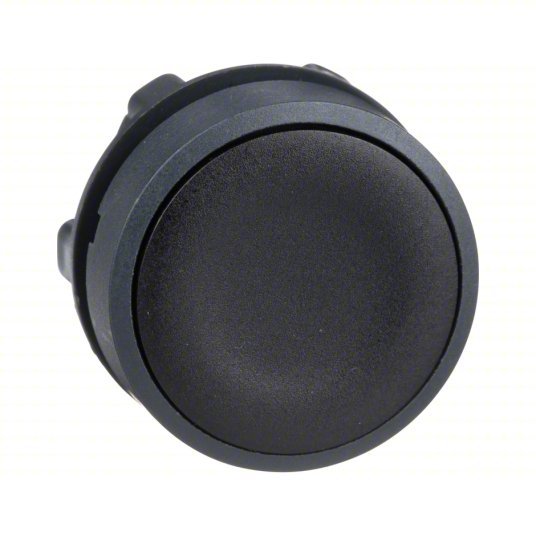

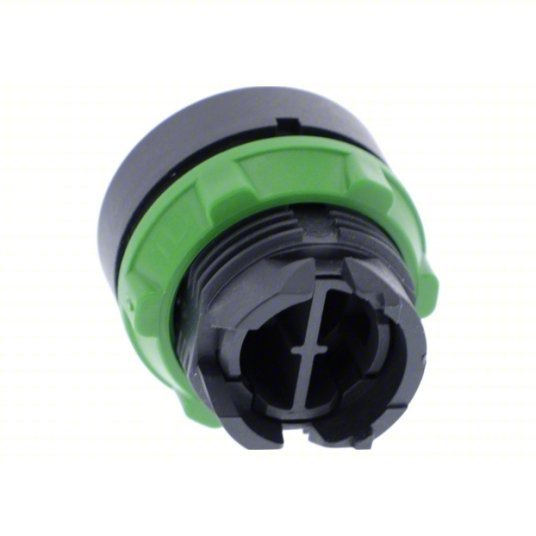

Schneider ZB5AA2 Flush Push Button Black, 22 mm Mounting Size, Non-Metallic, Momentary

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Black, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, IP69K, Legend Not Applicable, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508

Head Material	Plastic
NEMA Rating	1, 13, 2, 3, 4, 4X
Type of Operator	Flush Button
Color	Black
Number of Operators	1
Item	Flush Push Button
Bezel Material	Plastic
IP Rating	IP66, IP69K
Standards	Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Accessory Group	A
Basic Material	Plastic
Features	Visually Distinct at a Distance, Snap-Fit Assembly, Double Head
Series	XB5
Nema Degree Of Protection	NEMA 13 || NEMA 4X
Station Name	XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage	-40-70°C
Head Type	standard
Device Presentation	basic element
Product Or Component Type	head for non-illuminated push-button
Mechanical Durability	10000000 cycles
Ip Degree Of Protection	IP66 IEC 60529 || IP67 || IP69 || IP69K
Protective Treatment	TH
Device Short Name	ZB5
Overvoltage Category	class II IEC 60536
Operator Profile	black flush, unmarked
Product Certifications	CSA || LROS (Lloyds register of shipping) || DNV || UL Listed || GL || BV
Shape Of Signaling Unit Head	round
Ambient Air Temperature For Operation	-40-70°C
Ik Degree Of Protection	IK03 IEC 50102
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer	7000000 Pa 55°C 0.1 m
Electrical Composition Code	C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Operating Temperature - Maximum	158 Degrees F
Head Color	Black
Operating Temperature - Minimum	-40 Degrees F
Operator Illumination	Non-Illuminated
Hazardous Location Specification	Not Rated
Operator Material	Plastic
Push Button Style	Flush
Resistance Properties	Shock Resistant, Vibration Resistant
NEMA Enclosure Rating	1, 12, 13, 2, 3, 3R, 4, 4X
