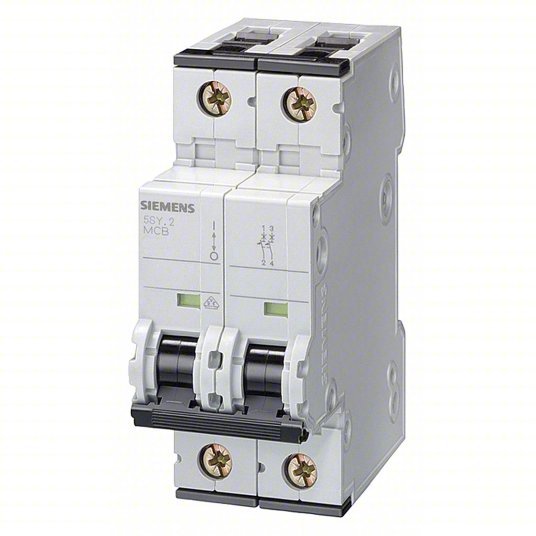

Siemens 5SY42018 IEC Supplementary Protector 1 A Amps, 72V DC, 10kA at 400V AC, Screw Clamp, 5SY4, 400V AC

IEC Supplementary Protector, Amps 1 A, AC Voltage Rating 400V AC, Max. AIR Rating 10kA at 400V AC, Series 5SY4, Curve Type D, DC Voltage Rating 72V DC, Number of Poles 2, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Screw Clamp, Trip Type Thermal Magnetic, Application Industrial, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 3.54 in, Width 1.39 in, Depth 3 in

Series	5SY4
Amps	1A
Number of Poles	2
AC Voltage Rating	400V AC
Phase	1
Circuit Breaker Actuator	Toggle
Circuit Breaker Mounting Style	DIN Rail
Max. AIR Rating	10kA at 400V AC
Trip Type	Thermal Magnetic
Terminal Connection	Screw Clamp
DC Voltage Rating	72V DC
Curve Type	D
Standards	CE, CSA C22.2 No. 235, cURus, EN 60898, EN 60947-2, UL 1077, UL File No. E116386
Application	Industrial
Housing Material	Thermoplastic
Features	Quick Assembly System
Meets UL Type	UL 1077
Mounting	Din Rail
