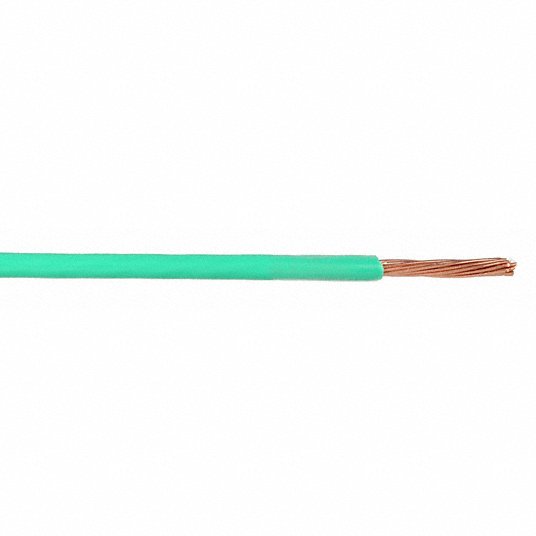

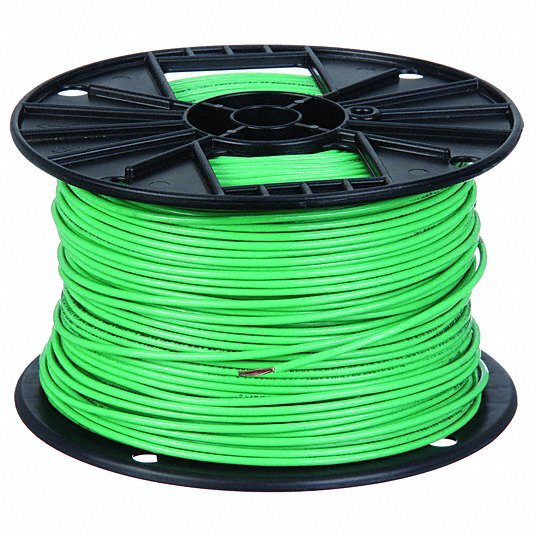

Southwire 22968201 Building Wire, THHN, 12 AWG, 500 ft, Green, Nylon Jacket, PVC Insulation
Original price
$157.99
-
Original price
$157.99
Original price
$157.99
$157.99
-
$157.99
Current price
$157.99
| /
When it comes to electrical wiring, the Southwire Building Wire is a must-have. It can be used for indoor applications in dry or wet locations. This 12 AWG building wire has a green nylon jacket and 600V AC voltage rating. It has a length of 500 ft and is perfect for use with small appliances, tools, lights, switches, receptacles and general purpose circuits. The THHN stranded wire is easy to strip and connect. If you are looking for quality building wire that will meet your needs on the job site, this Southwire Building Wire is the ideal choice.
| Item |
Building Wire |
| Trade Designation |
THHN |
| Voltage |
600V AC |
| Jacket Color |
Green |
| Insulation Material |
PVC |
| Temp. Rating |
194 Degrees F |
| Jacket Material |
Nylon |
| Wire Color |
Green |
| Number of Conductors |
1 |
| Conductor Design |
Stranded |
| Packaging |
Plastic Spool |
| Insulation Material (Wire and Cable) |
PVC |
| Wire Type |
THHN |
| Jacket Material - Wire and Cable |
Nylon |
| Max. Amps |
20 |
| Wire and Cable Item |
Building Wire |
| Standards |
UL,E34382 |
| Stranding |
19 |
| Wire Type - Wire and Cable |
THHN |
| Insulation Material - Wire and Cable |
PVC |
| Stranded / Solid |
Stranded |
| Application |
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C) |
| Product Type |
Building Wire |
| Jacket Thickness (Mils) |
5mils |
| Allowable Ampacity At 90C |
20 |
| No. of Conductors |
1 |
| Insulation Thickness (Mils) |
15mils |
| Construction |
ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| No. of Strands |
19 |
| Applications |
ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil. |
| Nom. Od (Mils) |
132mils |
| Allowable Ampacity At 75C |
20 |
| Allowable Ampacity At 60C |
20 |
| Package Quantity |
1 |
