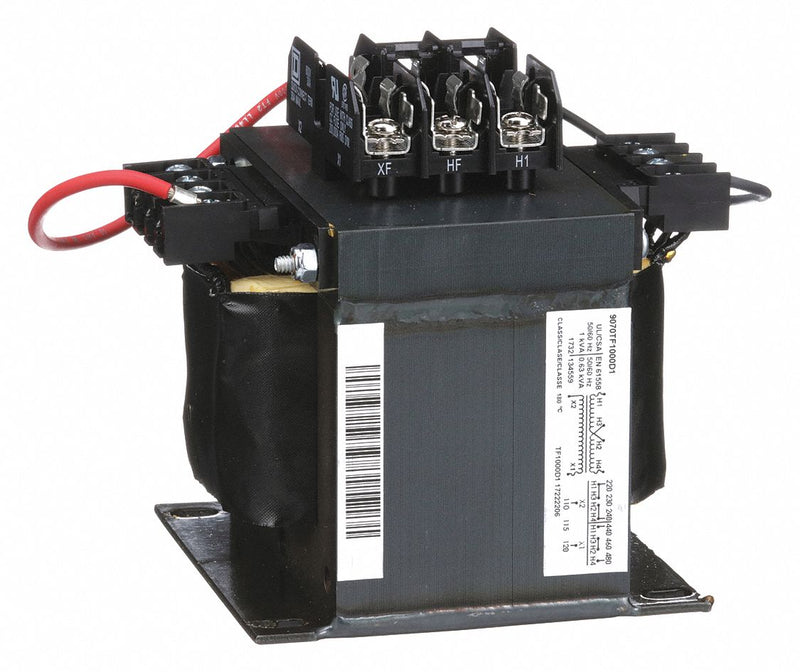

Square D 9070TF1000D1 Control Transformer, 220V AC/230V AC/240V AC/440V AC/460V AC/480V AC, Foot, 1 kVA

UPC: 785901904922 | Harmonization / Schedule B : 8504.31.4065

Country of Origin: Korea, Republic of | Shipping Weight: 21.5 lbs

$1,210.13 - $1,210.13

$1,210.13

$1,210.13 - $1,210.13

$1,210.13

Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1 kVA, Protective Device Primary and Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish

Overall Height	5.8 in
Overall Width	5.25 in
Overall Depth	6.3 in
Manufacturers Warranty Length	18 mo
For Fuse Diameter	7/16 in
For Fuse Length	1 1/2 in
CAD Available	Yes
Input Voltage - Transformer	240/480V AC
Output Voltage	110V AC, 115V AC, 120V AC
Power Rating	1 kVA
Phase	Single
Mounting - Transformer	Foot
Hz - Electrical	50/60 Hz
NEMA Enclosure Rating	Not Rated
Temperature Rise	115 Degrees C
Enclosure Finish	Epoxy Resin Varnish
Includes	Top Mounted Fuse Block
Enclosure Style - Transformer	Open
Fused	Yes
Standards	CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Protective Device	Primary and Secondary Fuse
Green Environmental Attribute	Mercury Free; Pvc Free
Winding Material - Transformer	Copper
Secondary Connection	Screw clamp terminals
Primary Connection	Screw clamp terminals
Insulation Max. Temp.	180 °C
Enclosure Type	Open
For Fuse Class	CC
Frequency	50/60 Hz
Enclosure Style	Open
Input Voltage	220V AC, 230V AC, 240V AC, 440V AC, 460V AC, 480V AC
Country of Origin	Korea, Republic of
