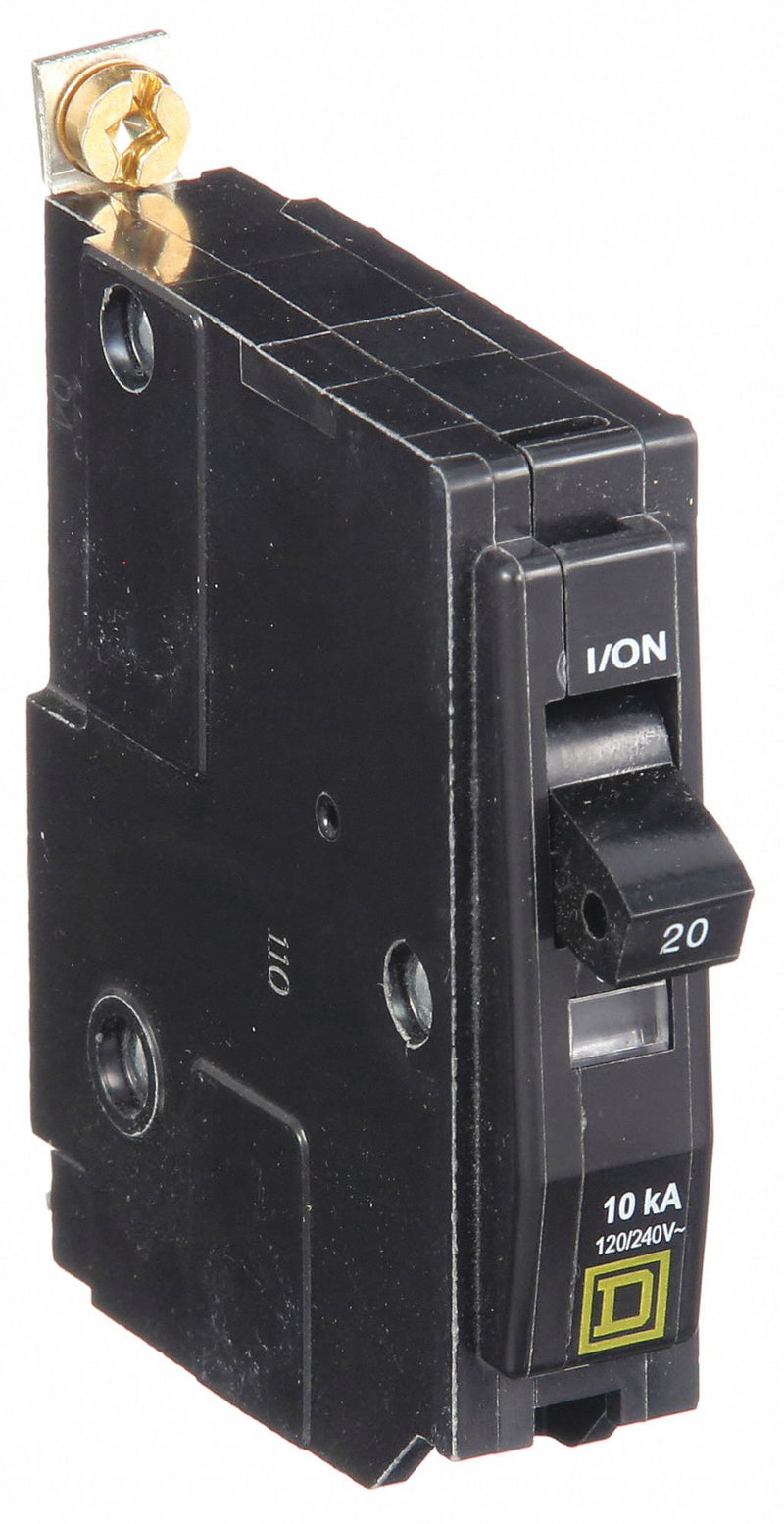

Square D QOB120HID Miniature Circuit Breaker, 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, 1 Poles
UPC: 785901543893 | Harmonization / Schedule B : 8536.20.0020
Country of Origin: South Korea | Shipping Weight: 0.25 lbs
Original price
$63.38
-
Original price
$63.38
Original price
$63.38
$63.38
-
$63.38
Current price
$63.38
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Intensity Discharge, Number of Poles 1, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 0.8 in, Depth 2.9 in
| Frame Size | 100A/QO |
|---|---|
| Width | 3/4 in |
| Depth | 2.91 in |
| Height | 2.99 in |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 14 AWG |
| Length | 3 in |
| CAD Available | Yes |
| Series | QO |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | High Intensity Discharge |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Trip Type | Thermal Magnetic, Trip Free |
| Instantaneous Trip | Trip Free |
| Terminal Connection | Pressure Plate |
| DC Voltage Rating | 48V DC |
| For Use With | Square D NQOD Panelboards |
| Standards | UL Listed |
| Application | Switching Duty rated Applications |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 120/240V AC |
| Max. Operating Temp. | 104 Degrees F |
| Compatible Panelboard/Load Center Series | QO |
| Min. Operating Temp. | 77 Degrees F |
| Voltage | 120VAC |
| Country of Origin | Korea, Republic of |
