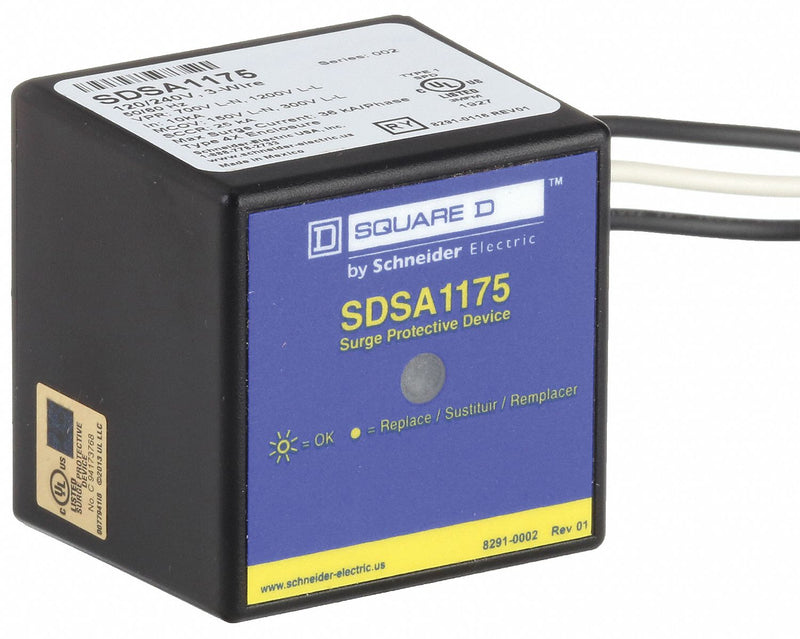

Square D SDSA1175 Surge Protection Device, Single Phase, 120/240V AC, 1200V (L-L)/700V (L-N), 150 V AC, 4X
UPC: 785901210870 | Harmonization / Schedule B : 8536.30.8000
Country of Origin: Mexico | Shipping Weight: 0.6 lbs
Original price
$142.82
-
Original price
$142.82
Original price
$142.82
$142.82
-
$142.82
Current price
$142.82
Surge Protection Device, Nonmetallic, Black, Amps 36 kA, Depth 2.7 in, Enclosure Material Plastic, Enclosure NEMA Rating 4X, Joules 1,304
| Length | 2 1/2 in |
|---|---|
| Depth | 2.7 in |
| Width | 2 1/4 in |
| CAD Available | Yes |
| Mounting Style | Chase Nipple |
| Phase | 1 |
| Voltage | 120/240V AC |
| Number of Poles | 2 |
| Voltage Protection Rating | 1200V (L-L), 700V (L-N) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-L, L-N |
| Max. Surge Current Per Mode | 36kA |
| Max. Surge Current per Mode | 36 kA |
| Max. Surge Current per Phase | 36 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 25kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Plastic |
| Wire Gauge | 14 AWG |
| Includes | LED Status Indicator |
| Joules | 1,304 |
| Standards | CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I |
| Modular / Nonmodular | Nonmodular |
| Max. Operating Temp. | 149 Degrees F |
| System Connection | Parallel |
| Amps | 36 kA |
| Color | Black |
| UL SPD Type | Type 1 |
| Basic Material | Nonmetallic |
| Status Indicator | LED Light |
| Includes Surge Counter | No |
| Country of Origin | Mexico |
