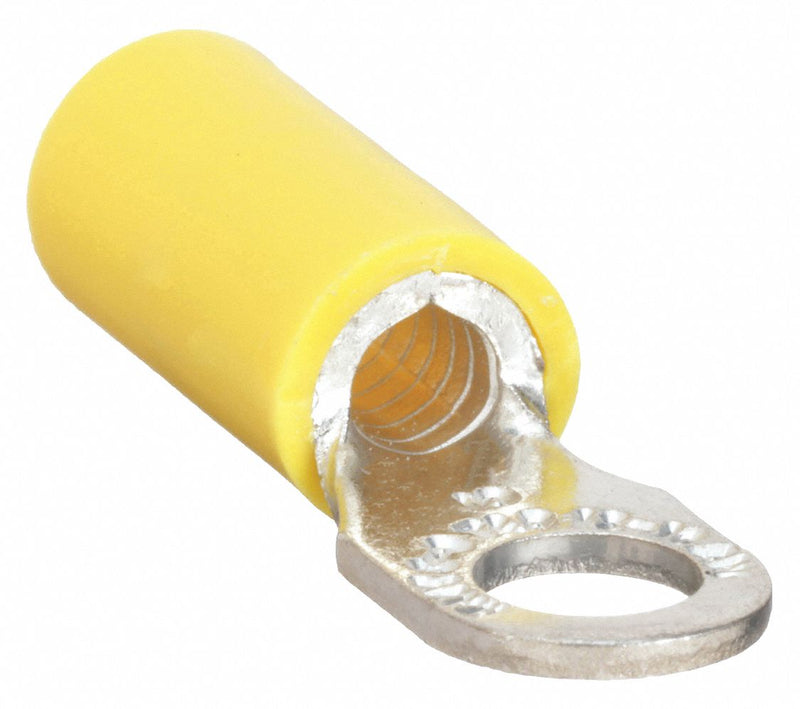

Sta-Kon 10RC-10 Ring Terminal, Yellow, Vinyl Insulation, #10 Stud Size, 12 AWG to 10 AWG Wire Sizes, 600 V
UPC: 786210800424 | Harmonization / Schedule B : 3919.90.5060
Country of Origin: United States | Shipping Weight: 0.27 lbs
Original price
$107.92
-
Original price
$107.92
Original price
$107.92
$107.92
-
$107.92
Current price
$107.92
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.63 in, Barrel Style Brazed Serrated, Compatible with Product Type Copper Conductors, Hole Spacing 0.27 in
| Terminal Shape | Standard Ring Tongue |
|---|---|
| Termination Style | Crimp Termination Only |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Type | Vinyl |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Minimum Operating Temperature | 221 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| Standards | CSA Certified, UL Listed E9809 |
| Seam | Brazed |
| Max. Temp. | 221 Degrees F |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Wire Range | 12 to 10 AWG |
| Features | These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point.; Brazed seam barrel is serrated to obtain high pull-out value.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC367 |
| Barrel Style | Brazed Serrated |
| Seam Style | Brazed |
| Insulation Material | Vinyl |
| Hole Spacing | 0.27 in |
| Compatible with Product Type | Copper Conductors |
| Contact Finish | Tin |
| Special Features | Protection and Relieve Bending Stress At Wires Flex Point |
| Insulation Dia | 0.21 in |
| Surface protection | Tinned |
| Country of Origin | United States |
