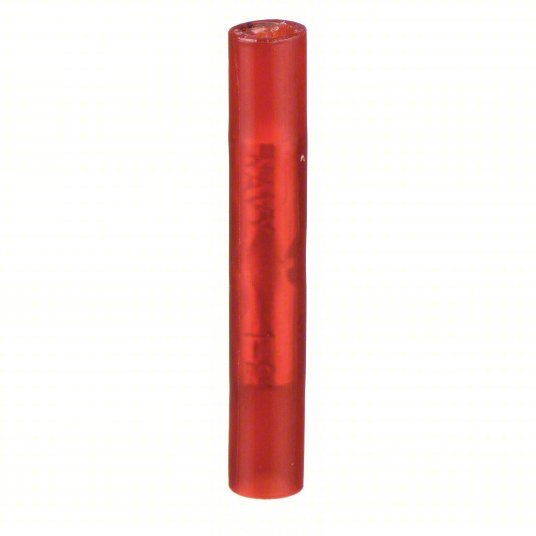

Sta-Kon 2RA18 Splice Connector 18 AWG/20 AWG/22 AWG Wire Size Range, MIL-T-7928/UL E9809, Nylon, 100 PK
Original price
$131.95
-
Original price
$131.95
Original price
$131.95
$131.95
-
$131.95
Current price
$131.95
Splice Connector, Connection Type Crimp, Insulation Material Nylon, Insulation Color Red, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards MIL-T-7928, UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 1.19 in, Seam Style Overlapped, Barrel Inside Diameter 0.115 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4001, WT112M, WT145C
| Color | Red |
| Material | Copper |
| Connection Type | Crimp |
| Wire Range | 22 to 18 AWG |
| Connection Material | Copper |
| Max. Temp. | 221 Degrees F |
| Connector Type | Butt Splice |
| Insulation Type | Nylon |
| Standards | MIL-T-7928, UL E9809 |
| Insulation Color | Red |
| Seam | Overlapped |
| Max. Voltage | 600 V |
| Voltage Rating | 600 V |
| Body Finish | Tin Plated |
| Compatible Installation Tool Model Number | ERG4001, WT112M, WT145C |
| Seam Style | Overlapped |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Termination Style | Crimp |
| Maximum Operating Temperature | 221 Degrees F |
| Body Material | Copper |
| Maximum Voltage | 600 V |
| Features | Nylon insulated splices meet or exceed the requirements of MIL-T-7928.; These splices are color-coded according to wire size.; Application Tools: ERG4001, WT145C, WT112M; Alternate Package Qty: RAA21 |
| Standard | UL E9809 |
| Type | Nylon Insulated Butt Splice |
| Finish | Electro -Tin Plated |
| Temperature Rating | 105 C |
| Special Features | Nylon insulated splices meet or exceed the requirements of MIL-T-7928. These splices are color-coded according to wire size. |
| AWG-range | 22-18 |
| Insulation | PA |
| Surface protection | Tinned |
