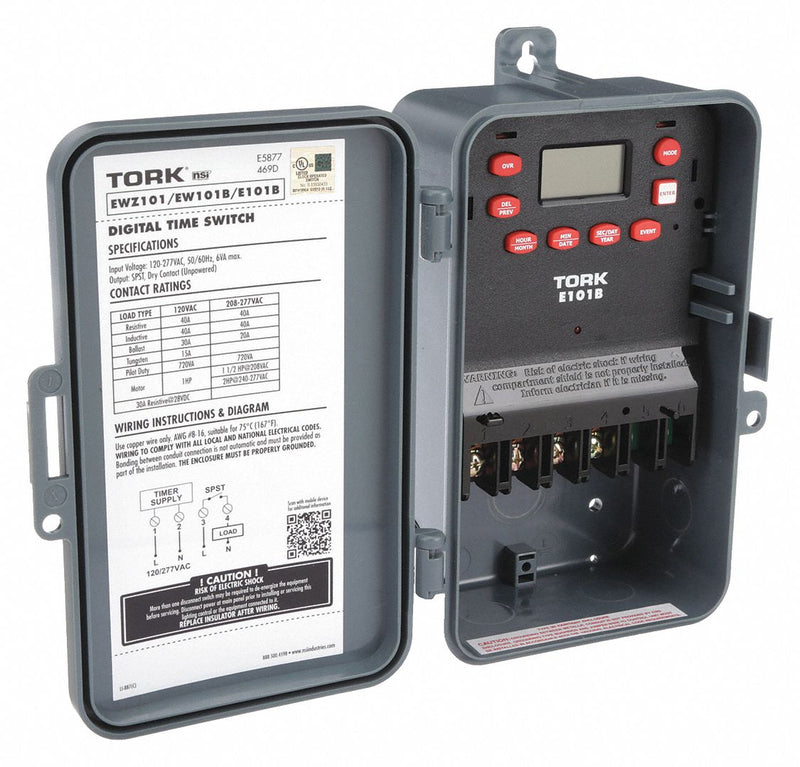

Tork E101B Electronic Timer, 24 hr, Not Astronomic, 120-277V AC, SPST, Digital
UPC: | Harmonization / Schedule B : 9107.00.8000
Country of Origin: China | Shipping Weight: 1.6 lbs
Original price
$313.83
-
Original price
$313.83
Original price
$313.83
$313.83
-
$313.83
Current price
$313.83
These timer switches have digital displays and buttons for selecting and viewing settings. Digital timer switches offer more precise programming capabilities, support detailed scheduling options, and are easier to program than electromechanical timer switches. They require minimal maintenance and are less likely to experience mechanical failures because they don't have any moving parts that can break down over time.
| Applicable AC Voltage Ranges | 120-277V AC |
|---|---|
| Application | Fans; HVAC; Lighting; Pump Controls; Water Heaters |
| Astronomic Functionality | Not Astronomic |
| Backup Device | Capacitor |
| Backup Time | 4 day |
| Body Color | Gray |
| Body Material | Plastic |
| Compatible Lighting | Fluorescent; Incandescent; LED |
| Contact Form | SPST |
| Current Rating | 30 A |
| Digital Timer Functions | On/Off |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Events Available | 20 |
| Horsepower @ 120V - Maximum | 1 hp |
| Horsepower @ 240V - Maximum | 2 hp |
| Indoor/Outdoor Usage | Indoor; Outdoor |
| Mounting Style | Surface |
| NEMA Enclosure Rating | 3R |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Operating Temperature - Maximum | 149 °F |
| Operating Temperature - Minimum | -40 °F |
| Overall Depth | 3-1/16 in |
| Overall Height | 8-5/16 in |
| Overall Width | 5-1/16 in |
| Series | E |
| Standards | UL 917; UL Listed |
| Time Setting - Maximum | 24 hr |
| Time Setting - Minimum | 1 min |
| Country of Origin | China |
