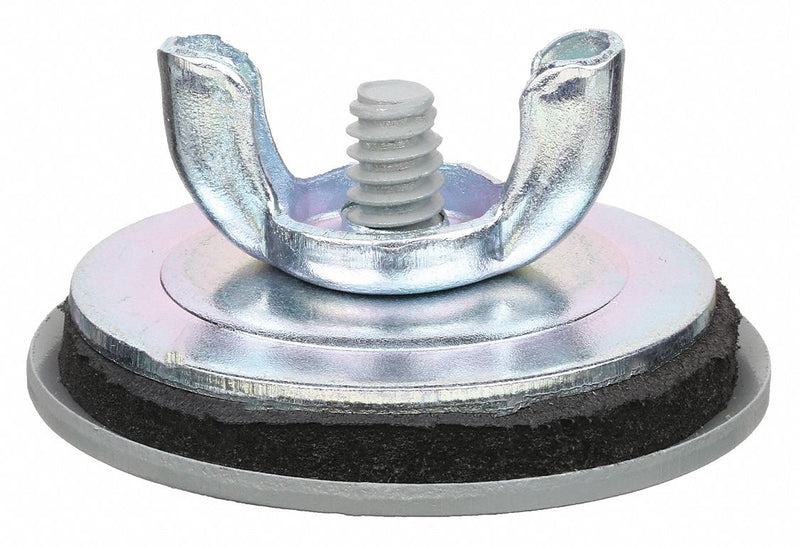

Wiegmann WAS075 Hole Seal, Steel, 3/4 in Conduit Hole Size, For 0.75 in Hole Dia - Max, Carbon Steel, Gray
UPC: 786725490301 | Harmonization / Schedule B : 7326.90.8588
Country of Origin: China | Shipping Weight: 0.05 lbs
Original price
$18.02
-
Original price
$18.02
Original price
$18.02
$18.02
-
$18.02
Current price
$18.02
Hole Seal, Hole Dia. 1.05 in, Material Carbon Steel, Conduit Size 0.75 in, Designed To Seal Unused Pushbutton or Conduit Holes
| Length | 4.125 in |
|---|---|
| Height | 1 in |
| Width | 2.500 in |
| Conduit Size | 0.75 in |
| Hole Dia. | 1.05 in |
| Each - Width | 2.500 in |
| Depth | 0.7 in |
| Size | 4.125 in x 2.5 in x 1 in |
| Dimensions | 4.125 in x 2.5 in x 1 in |
| Conduit Hole Size | 3/4 in |
| For Hole Diameter - Maximum | 0.75 in |
| Finish | Painted |
| Material | Carbon Steel |
| Color | Gray |
| Includes | Oil Resistant Gasket, Quick Wing Nut |
| Designed To | Seal Unused Pushbutton or Conduit Holes |
| For Use With | Steel Enclosures |
| NEMA Enclosure Type | 12 and 4 |
| Gasket | Oiltight |
| Material type | Carbon Steel |
| Application | Designed to seal extra push-button holes, conduit openings, and knockout openings from dirt, dust, oil and water. |
| Cubic Capacity | 1.75 cu.in |
| Type | Accessory |
| Finish Type | Smooth |
| Standard | cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791 |
| Industry Standard(s) | cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791 |
| Accessory Type | Hole Seal |
| Special Features | 3/4-inch conduit holes. Quick wing nut. Oil resistant gasket. ANSI-61 gray smooth finish. |
| Features | Quick wing nut; Oil resistant gasket; ANSI 61 gray polyester powder; Maintains UL rating of the enclosure when like materials are used |
| For Hole Type | Conduit, Knockouts, Push Buttons |
| NEMA Enclosure Rating | 1, 12, 13, 4, 4X |
| Oiltight Seal | Oiltight |
| Country of Origin | China |
