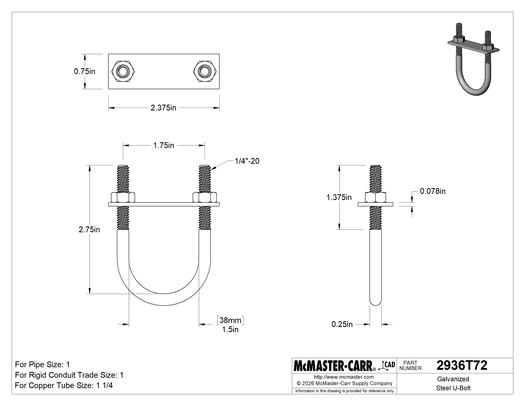

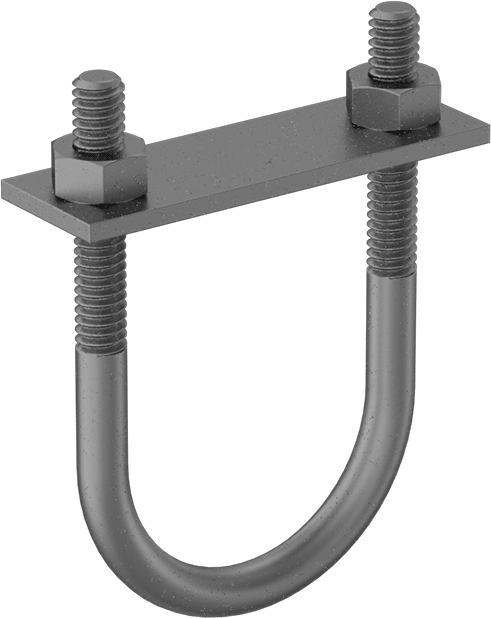

McMaster 2936T72 Galvanized Steel U-Bolt, with Mounting Plate, 1/4"-20 Thread Size, 1-1/2" ID
UPC: | Harmonization / Schedule B : 7318.15.2000
Country of Origin: United States | Shipping Weight: 0.1 lbs
Original price
$39.05
-
Original price
$39.05
Original price
$39.05
$39.05
-
$39.05
Current price
$39.05
A mounting plate provides a more secure hold at the mounting surface. Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.
Galvanized Steel — Galvanized steel U-bolts have better corrosion resistance than black-oxide and zinc-plated steel U-bolts.
| Includes Mounting Plate | Yes |
| Material | Galvanized Steel |
| Thread Size | 1/4"-20 |
| Inch | 1.5" |
| Metric | 38 mm |
| For Pipe Size | 1 |
| Height | 2 3/4" |
| Thread Length | 1 3/8" |
| Weight Capacity | 425 lb. |
| Center-to-Center | 1 3/4" |
| Number Included | 1 |
| Material | Galvanized Steel |
| Length | 2 3/8" |
| Width | 3/4" |
| Thickness | 3/32" |
| Number of Nuts Included | 2 |
| For Copper Tube Size | 1 1/4 |
| For Rigid Conduit Trade Size | 1 |
| Leg Diameter | 1/4" |
| Mount Type | Threaded |
| Type | Hex |
| Material | Steel |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 731815.2000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
