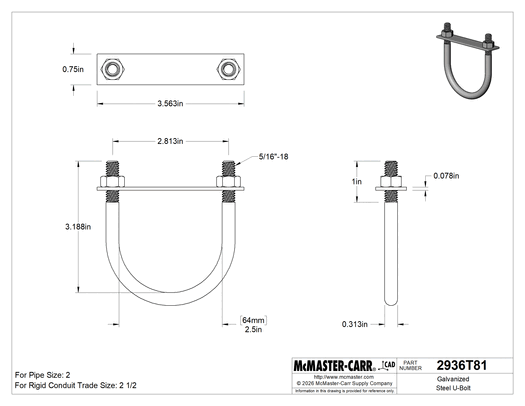

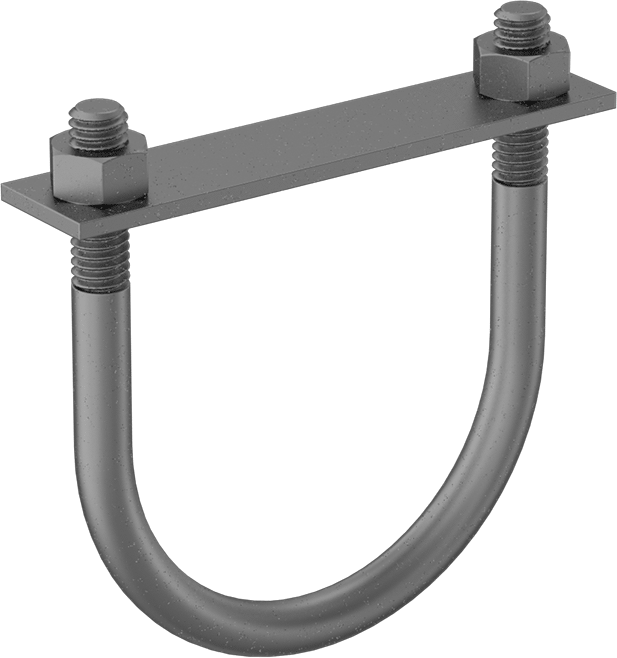

McMaster 2936T81 Galvanized Steel U-Bolt, with Mounting Plate, 5/16"-18 Thread Size, 2-1/2" ID
UPC: | Harmonization / Schedule B : 7318.15.2000
Country of Origin: United States | Shipping Weight: 0.05 lbs
Original price
$40.44
-
Original price
$40.44
Original price
$40.44
$40.44
-
$40.44
Current price
$40.44
A mounting plate provides a more secure hold at the mounting surface. Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.
Galvanized Steel — Galvanized steel U-bolts have better corrosion resistance than black-oxide and zinc-plated steel U-bolts.
| Includes Mounting Plate | Yes |
| Material | Galvanized Steel |
| Thread Size | 5/16"-18 |
| Inch | 2.5" |
| Metric | 64 mm |
| For Pipe Size | 2 |
| Height | 3 3/16" |
| Thread Length | 1" |
| Weight Capacity | 600 lb. |
| Center-to-Center | 2 13/16" |
| Number Included | 1 |
| Material | Galvanized Steel |
| Length | 3 9/16" |
| Width | 3/4" |
| Thickness | 3/32" |
| Number of Nuts Included | 2 |
| For Rigid Conduit Trade Size | 2 |
| Leg Diameter | 5/16" |
| Mount Type | Threaded |
| Type | Hex |
| Material | Steel |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 731815.2000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
