McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
UPC: | Harmonization / Schedule B : 7318.24.0000
Country of Origin: United States | Shipping Weight: 0.17 lbs
Original price
$60.62
-
Original price
$60.62
Original price
$60.62
$60.62
-
$60.62
Current price
$60.62

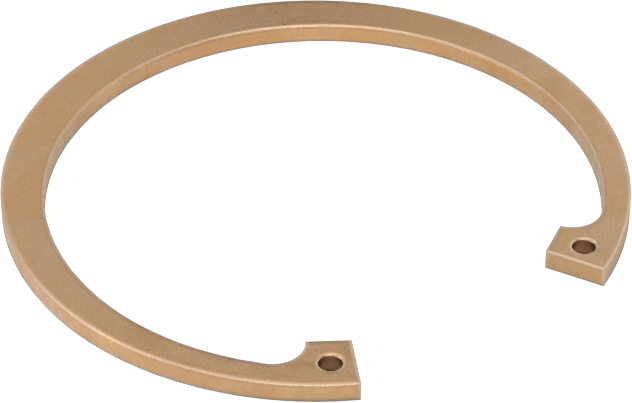

Secure components inside a housing or bore with our go-to internal retaining rings. Shaped in the most common style, these are tapered so the thickest section is opposite their opening for a secure 360-degree hold. Squeeze with retaining ring pliers and release into a groove.

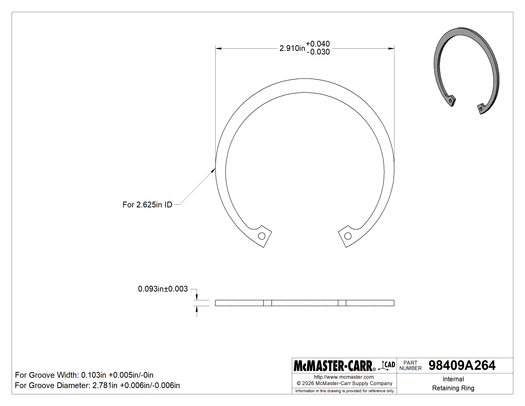

Ring OD is measured with the ring uninstalled.
Zinc-Yellow-Chromate-Plated Carbon Steel—These rings are strong with good wear resistance. They provide some corrosion resistance, but not as much as stainless steel rings.
| Retaining Ring Type | Internal |
| Material | Zinc-Yellow-Chromate-Plated Carbon Steel |
| For ID | 2 5/8" |
| Diameter | 2.781" |
| Diameter Tolerance | -0.006" to 0.006" |
| Width | 0.103" |
| Width Tolerance | 0" to 0.005" |
| OD | 2.91" |
| OD Tolerance | -0.03" to 0.04" |
| Thk. | 0.093" |
| Thk. Tolerance | -0.003" to 0.003" |
| Thrust Load Capacity | 35,000 lbf |
| Minimum Hardness | Rockwell C40 |
| Specifications Met | ASME B18.27.1 |
| Magnetic Properties | Magnetic |
| Retaining Ring Style | Tapered |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | Not Compliant |
| Schedule B Number | 731824.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
| Related Product | Pliers |
