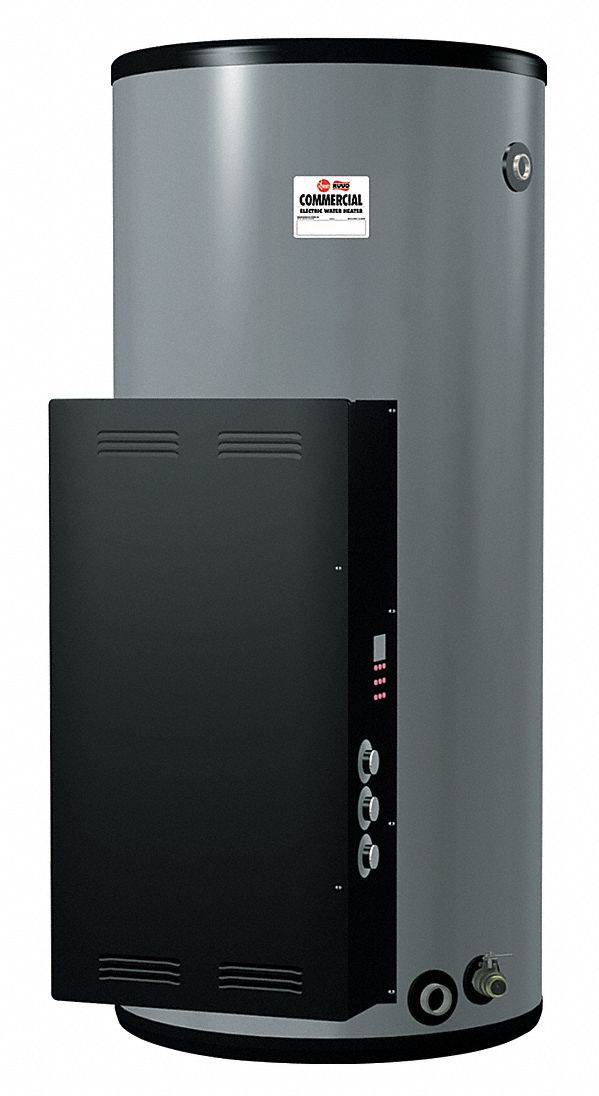

Rheem ES120-27-G Electric Tank Water Heater, 120 gal, 480V, 27,000 W, Single/Three Phase, 279 gph @ 40°F
UPC: 203524505826 | Harmonization / Schedule B : 8516.10.0040
Country of Origin: United States | Shipping Weight: 404 lbs
Original price
$9,100.48
-
Original price
$9,100.48
Original price
$9,100.48
$9,100.48
-
$9,100.48
Current price
$9,100.48
Electric Water Heater, Operating Voltage 480V AC, Phase Single, Three, Equivalent BtuH 92,129 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 279 gph @ 40 Degrees F, Overall Height 67.6 in, Power Consumption 27,000 W, Tank Capacity 120 gal, Tank Diameter 30.25 in, Market Commercial, Number of Elements 6, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 56 A, Element Material Stainless Steel, Height to Cold Inlet 4.8 in
| Commercial / Residential | Commercial |
|---|---|
| Water Heater Design | Whole House |
| Tank Capacity | 120 gal |
| Voltage | 480V |
| Phase | Single, Three |
| Total Watts | 27,000 W |
| Industry Type | Commercial |
| Recovery @ 110 F Rise | 102 gph |
| Recovery @ 70 F Rise | 160 gph |
| Recovery @ 90 F Rise | 124.0 gph |
| Recovery @ 50 F Rise | 223 gph |
| Compliance | Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards |
| Recovery @ 120 F Rise | 93 gph |
| Amps AC | 33 for 3 Phase, 56 for 1 Phase |
| Residential / Commercial | Commercial |
| Voltage - Water Heaters | 480 |
| Connection Type | NPT |
| Connection Location | Cold Side/Hot Top |
| Tank Capacity - Plumbing | 119.9 gal |
| Features | Inputs of 3KW to 108KW, Four Voltages to choose from, Lifeguard Stainless Steel Elements, 98% Thermal Effeciency, System Sentenal, Full Port/Full Flow Brass Drain Valve |
| Recovery @ 140 F Rise | 80 gph |
| Fuel Type | Electric |
| System of Measurement | Inch |
| Recovery @ 130 F Rise | 86 gph |
| Includes | Brass Drain Valve, Factory-Installed T&P Valve |
| Application | Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood |
| Standards | AHRI Compliant, CSA Certified, LWH, UL EPH Listed, UL Listed |
| Temp. Range | 120 Degrees to 180 Degrees F |
| Vent Type | Standard |
| Item - Water Heaters | Electric Water Heater |
| Water Connection | 1-1/2 in NPT |
| Recovery @ 100 F Rise | 112 gph |
| Phase - Water Heaters | 1/3 |
| Max. Pressure | 150 psi |
| Number of Elements | 6 |
| Hot Outlet Type | NPT |
| Tank Insulation Material | Polyurethane |
| Minimum Delivered Temperature | 90 Degrees F |
| Thermostat Mounting | Surface |
| Maximum Delivered Temperature | 190 Degrees F |
| Cold Inlet Type | NPT |
| Water Connection Location | Side, Top |
| Current | 56 A |
| Equivalent BtuH | 92,129 BtuH |
| Operating Voltage | 480V AC |
| Recovery Rate @ Rise | 102 gph @ 110 Degrees F, 112 gph @ 100 Degrees F, 124 gph @ 90 Degrees F, 140 gph @ 80 Degrees F, 160 gph @ 70 Degrees F, 186 gph @ 60 Degrees F, 223 gph @ 50 Degrees F, 80 gph @ 140 Degrees F, 86 gph @ 130 Degrees F, 93 gph @ 120 Degrees F |
| Automatic Thermostat | Yes |
| Maximum Recovery Flow Rate | 279 gph @ 40 Degrees F |
| Power Consumption | 27,000 W |
| Thermal Efficiency | 98 % |
| Included Valves | Drain, Temperature and Pressure Relief |
| Tank Lining Material | Vitreous Glass |
| Market | Commercial |
| Element Material | Stainless Steel |
| Maximum Water Pressure | 150 psi |
| Country of Origin | United States |
