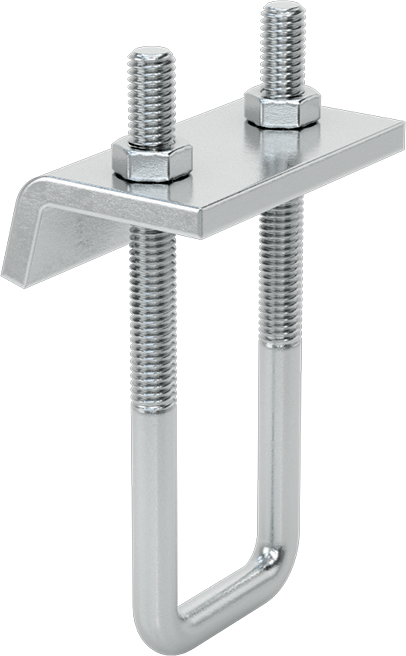

McMaster 1815T13 Beam Clamp, for 2-7/16" to 3-1/4" High Strut Channel, Zinc-Plated Steel
UPC: | Harmonization / Schedule B : 7326.90.8630
Country of Origin: United States | Shipping Weight: 0.34 lbs
Original price
$53.16
-
Original price
$53.16
Original price
$53.16
$53.16
-
$53.16
Current price
$53.16
Attach strut channel to structural beams without welding or drilling. Since these mounts clamp into place, you can easily reposition them as your needs change.

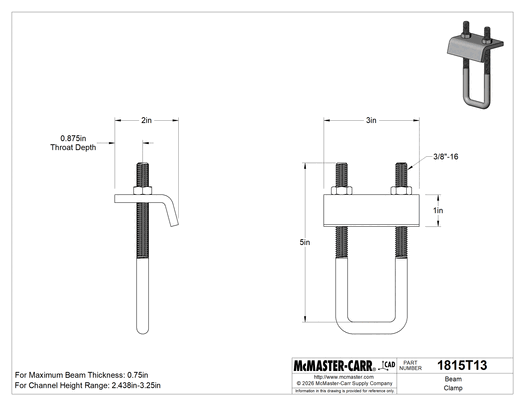

Style 1—Mounting plates grip the beam flange while the square U-bolts cradle the channel. Fasten these mounts with the included hex nuts. Use in pairs; weight capacity is per pair.
Zinc-Plated Steel—Strong and durable with a zinc plating that protects from occasional exposure to moisture.
| Framing Type | Strut Channel |
| Strut Channel Framing Component | Beam Mount |
| Material | Zinc-Plated Steel |
| Height | 2 7/16" to 3 1/4" |
| Width | 1 5/8" |
| For Beam Shape | Flat, Taper |
| For Beam Thk. | 3/4" |
| Weight Capacity | 1,200 lb. |
| Throat Depth | 7/8" |
| Length | 2" |
| Width | 3" |
| Height | 1" |
| Mounting Fasteners Included | Yes |
| Beam Mount Location | Bottom |
| For Mounting Orientation | Perpendicular |
| For Strut Channel Type | High Profile |
| For Suspending | Strut Channel |
| Mount Type | Clamp On |
| Mounting Location | Beam |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 732690.8630 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
