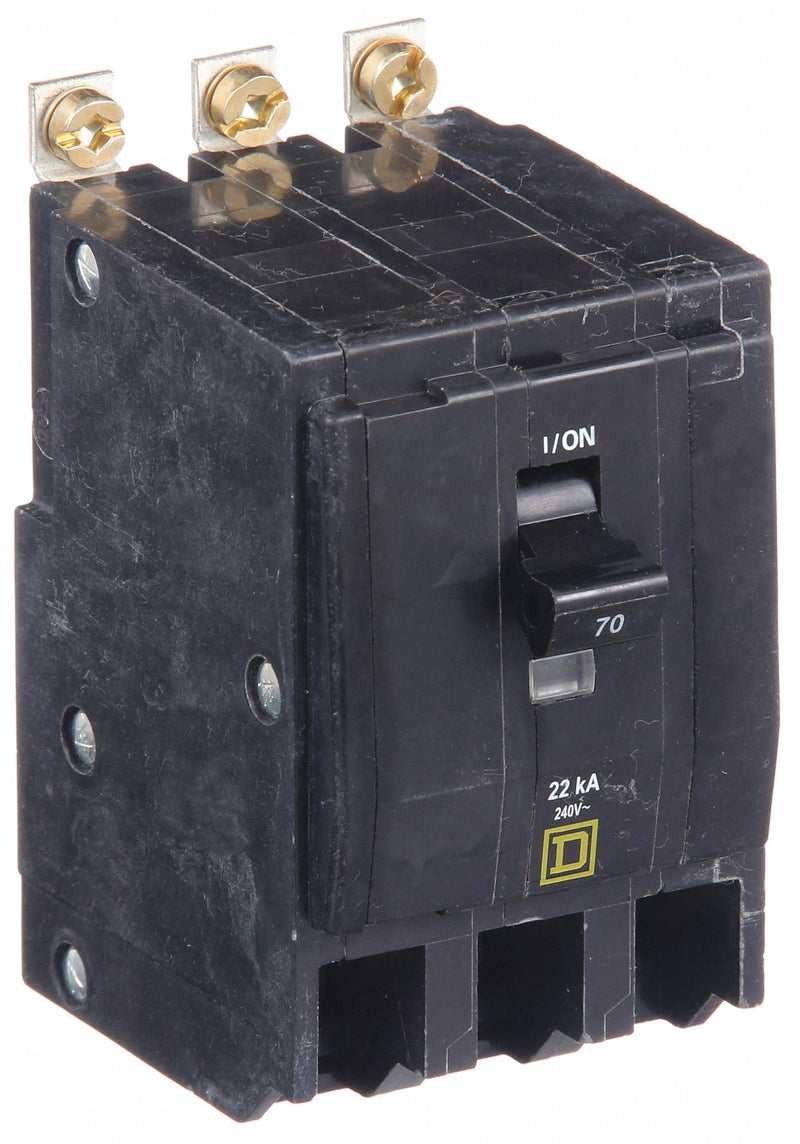

Square D QOB370VH Miniature Circuit Breaker, 70 A, 120/240V AC, Three Phase, 22kA at 120/240V AC, 3 Poles
UPC: 785901054849 | Harmonization / Schedule B : 8536.20.0040
Country of Origin: South Korea | Shipping Weight: 1.15 lbs
Original price
$933.75
-
Original price
$933.75
Original price
$933.75
$933.75
-
$933.75
Current price
$933.75
Miniature Circuit Breaker, Amps 70 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Three, Series QOB, Max. AIR Rating 22kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.1 in, Width 2.3 in, Depth 2.9 in
| Series | QO |
|---|---|
| Amps | 70A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120/240V AC |
| Trip Type | Thermal Magnetic, Trip Free |
| Instantaneous Trip | Trip Free |
| Terminal Connection | Lugs |
| DC Voltage Rating | Not Rated |
| For Use With | Square D NQOD Panelboards |
| Standards | UL Listed |
| Features | Mercury Free |
| Interrupt Rating | 22 kA at 120/240V AC |
| Application | HACR rated Applications |
| Compatible Panelboard/Load Center Series | QO |
| Max. Operating Temp. | 104 Degrees F |
| Min. Operating Temp. | 77 Degrees F |
| Voltage | 240VAC |
| Country of Origin | Korea, Republic of |
