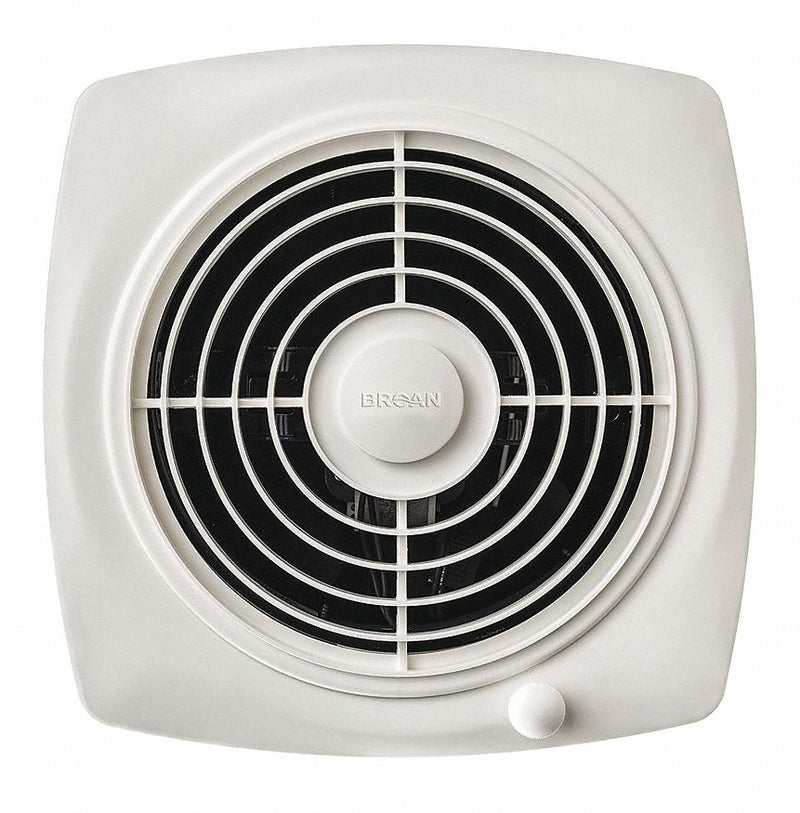

Broan 509S Exhaust Fan, 180 cfm, 195 sq ft Coverage, 8 in Duct, 9 sones, For 4 1/2 in to 9 1/2 in Wall Thick
UPC: 026715022908 | Harmonization / Schedule B : 8414.90.1080
Country of Origin: United States | Shipping Weight: 12.5 lbs
Original price
$220.44
-
Original price
$220.44
Original price
$220.44
$220.44
-
$220.44
Current price
$220.44
Exhaust Fan, Control Type Rotary Dial, Duct Diameter 8 in, Exhaust Airflow @ 0.000 in SP 180 cfm, For Maximum Wall Thickness 9 1/2 in, For Minimum Wall Thickness 4 1/2 in, Housing Material Steel, Housing Finish Galvanized, Includes Backdraft Damper, Rotary On-Off Switch, Weather Hood, Maximum Airflow 200 cfm, Maximum Coverage Area 195 sq ft, Maximum Noise Level 9 sones
| Type | Through-the-Wall |
|---|---|
| Voltage | 120 V AC |
| CFM @ 0.000-In. SP | 180 cfm |
| Grille Color | White |
| Includes | Backdraft Damper, Rotary On-Off Switch, Weather Hood |
| Motor RPM | 1,925 RPM |
| Amps | 1.5 A |
| Sones HVI | 6.5 |
| Housing Material | Steel |
| Grille Material | Polymeric |
| Hz | 60 |
| Standards | HVI(R) Certified |
| Green Certification or Other Recognition | HVI(R) Certified |
| Frequency | 60 Hz |
| Ventilation Type | Exhaust |
| Wattage | 89.2 W |
| Housing Finish | Galvanized |
| Full Load Current | 1.8 A |
| Includes Motor | Yes |
| Nameplate Voltage | 120V AC |
| Motor Speed | 1,925 RPM |
| Maximum Airflow | 200 cfm |
| Vent Design | Ductless |
| Maximum Coverage Area | 195 sq ft |
| Maximum Noise Level | 9 sones |
| Number of Fans | 1 |
| Thermal Protection | Yes |
| Exhaust Airflow @ 0.000 in SP | 180 cfm |
| Control Type | Rotary Dial |
| Duct Shape | Round |
| Phase | 1 |
| Includes Grill | Yes |
| Country of Origin | United States |
