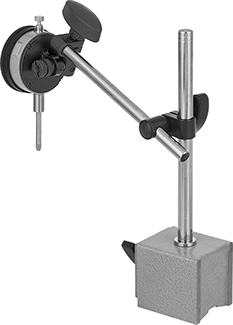

Mitutoyo 64PKA079B Dial Indicator & Mag Base Set 0.05 in Range, Continuous Reading, 0-10 Dial Reading, AGD 2
Original price
$302.99
-
Original price
$302.99
Original price
$302.99
$302.99
-
$302.99
Current price
$302.99
Mitutoyo Dial Indicator, Range 1 In., Range per Revolution 0.100 In., Dial Reading 0-100, Magnetic Stand Can be Attached on a Flat Surface, Perpendicularly or Horizontally or on Cylindrical Surface, Finish Fully Chrome Plated, Includes Dial Indicator and Magnetic Base with On/Off Switch. McMaster 1308N1
| Graduations | 0.001 in |
| Range | 0 in to 1 in; 0 mm to 25.4 mm |
| Features | Stem 3/8" Dia. 8mm #4-48 UNF Thread |
| Accuracy | +/-0.001 in (first 2.5 revolutions), +/-0.002 in (overall) |
| Resolution | 0.00005 in / 0.001 mm |
| Includes | Dial Indicator |
| Indicator Style | Plunger |
| Reading | Continuous |
| Bearing Type | Plain |
| Series | 7 |
| Dial Reading | 0-10 |
| Item | Dial Indicator & Mag Base Set |
| Dial Color | White |
| Bezel Lock | No |
| Back Type | Magnetic |
| Range per Revolution | 0.100 in |
| Long Form Calibration Certificate | No |
| Standards | ISO, ISO / IEC Guide 98-3, ISO 14253-2, JIS B 0641-1 |
| Minimum Measurement - Inch | 0 in |
| Includes Case | No |
| Included Certification | Certificate of Inspection |
| Case Type | No case included |
| Maximum Measurement - mm | 25.4 mm |
| Minimum Measurement - mm | 0 mm |
| Included Indicator and Base | 2416S, 7010S |
| Compatible Wireless Transmitter | This is not an electronic indicator so this attribute does not apply |
| Arm Type | Post and Arm |
| Step Type | The 3/8 in diameter stem easily attaches to the base |
| Base Type | Magnetic |
| Includes Snug | Yes |
| Maximum Measurement - Inch | 1 In |
| Compatible Indicator Mounts | Lug Back, Stem |
| Operation Type | Mechanical |
| AGD Number | AGD 2 |
| Included Base manufacturer Model No | 7010S |
| Holding Power | 600 N |
| Magnet Type | On-Off Switch |
| Data Output Type | This is not an electronic indicator so this attribute does not apply |
| Included Indicator Manufacturer Model No | 2416S |
| Compatible SPC Cable | Type E |
| Test Indicator Style | Vertical |
| Product Type | Dial Indicator & Mag Base Set |
| Package Quantity | 1 |
