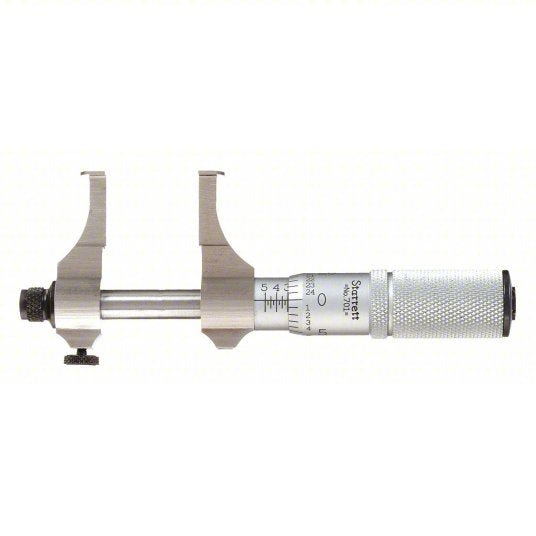

Starrett 701A Inside Groove Micrometer, 0.5 to 1.5"
Original price
$1,061.49
-
Original price
$1,061.49
Original price
$1,061.49
$1,061.49
-
$1,061.49
Current price
$1,061.49

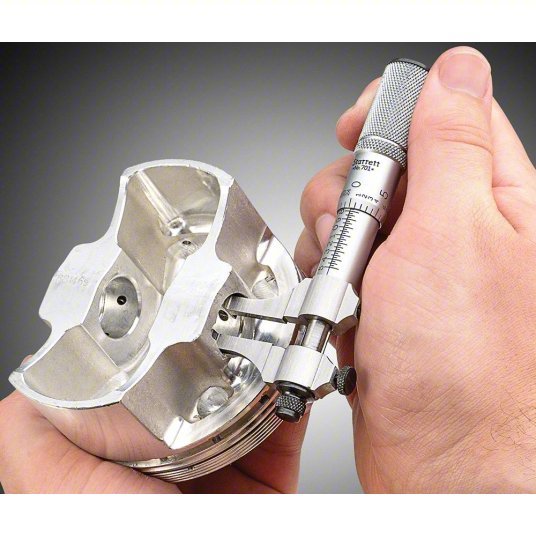

If you are looking for a micrometer that will measure the internal groove of a part, this Starrett 701A Internal Groove Micrometer is just what you need. This 0.5 to 1.5" micrometer has an accuracy of +/-0.0001 in and a resolution of 0.001". The curved spindle allows for smooth operation and the friction thimble locks the setting securely in place once it has been set. This product comes with a screw lock nut type and steel anvil material as well as a curved anvil shape for more accurate measurements on irregular shapes and surfaces. If you want to measure accurately, this Starrett Internal Groove Micrometer is the ideal tool to have on hand.
| Item | Internal Groove Micrometer |
| Resolution | 0.001" |
| Range | 0.500 to 1.500" |
| Features | Contacts Have Flush Ends, Satin Chrome Reading Surface is Glare Free and Resists Rust, Gaging Contacts are 0.030" Thick |
| Spindle | Curved |
| Anvil | Curved |
| Thimble | Friction |
| Lock Nut Type | Screw |
| Anvil Material | Steel |
| Spindle Material | Steel |
| SPC Output | No |
| Movement of Screw | 1 in |
| Rotating Spindle (Yes/No) | No |
| Long Form Calibration Certificate | No |
| Maximum Measurement - Inch | 1.5 in |
| Accuracy | +/-0.0001 in |
| Thimble Type | Friction |
| Functions | Contacts Have Flush Ends, Hardened And Ground Gaging Contacts, Satin Chrome Reading Surface Is Glare Free And Resists Rust |
| Anvil Shape | Curved |
| Coolant Resistant | No |
| Operation Type | Mechanical |
| Minimum Measurement - Inch | 0.5 in |
